Anycubic Kobra 3 Max: 420 × 420 × 500 mm With Multi-Colour
LayerWalker is a participant in the Amazon Services LLC Associates Program. We may earn a commission when you buy through links on our site, at no extra cost to you.

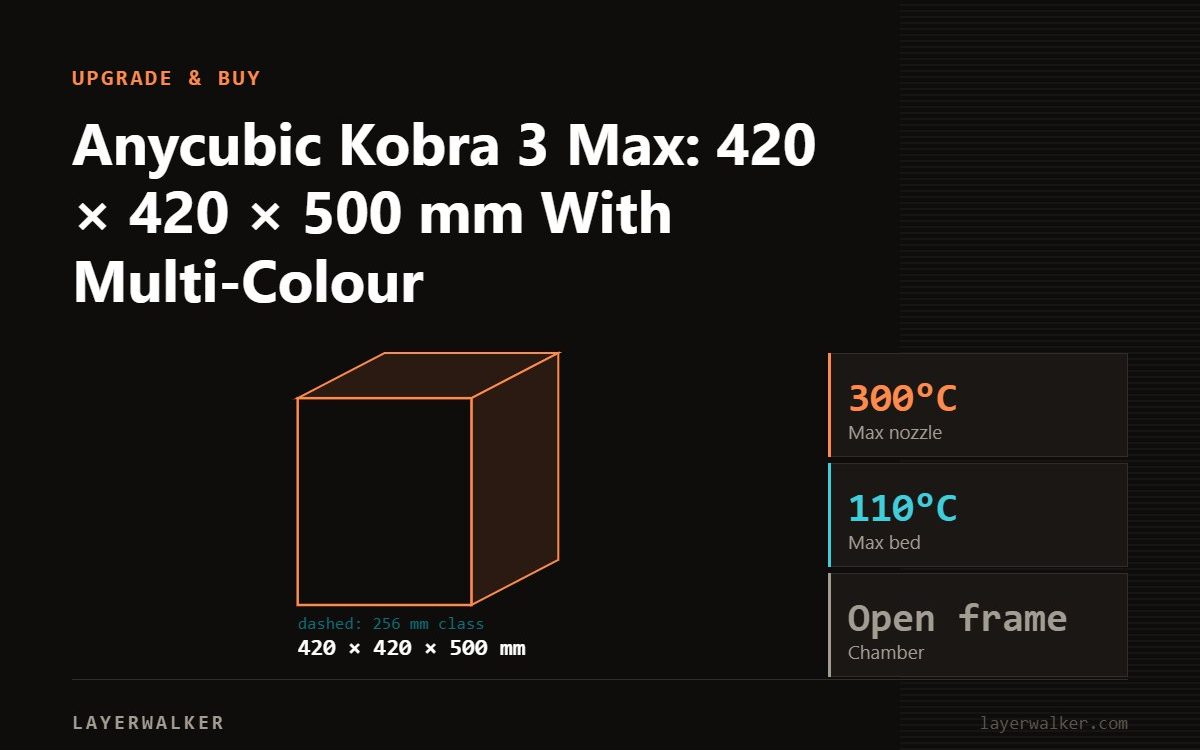

The Kobra 3 Max is a 420 × 420 × 500 mm open bedslinger with a 300 °C hotend, 600 mm/s rated speed, 10000 mm/s² and, in the Combo, the ACE Pro for up to eight colours. It is the only 400 mm class printer with a mainstream multi-colour system. Large PLA and PETG are its home; ABS at this size on an open frame is not. Based on manufacturer data and owner reports.
Where to buy
Specifications
| Item | Value | Note |
|---|---|---|
| Build volume | 420 × 420 × 500 mm | 88 litres |
| Frame | Bedslinger | The 420 mm bed moves in Y |
| Max nozzle temperature | 300 °C | |
| Max bed temperature | 110 °C | Heats to 60 °C in about two minutes per Anycubic |
| Speed / acceleration | 600 mm/s / 10000 mm/s² | Recommended 300 mm/s |
| Multi-material | ACE Pro, 4 spools per unit, 8 with two | Heated drying |
| Filament cutter | Yes, relocated for reliability | |
| Camera | Optional |
What it is for
Helmets and armour in one piece, large multi-colour signage, planters and batch plates. It is the machine for people who want big and colourful in one purchase. On a 420 mm moving bed, realistic speed for tall parts is a fraction of 600 mm/s; owners run 150 to 250 mm/s and a 0.6 mm nozzle.
Limits
- Open frame. ABS and ASA warp at this size, and there is no official enclosure.
- Bedslinger mass. Tall parts show ringing above moderate speeds.
- Purge waste scales with the model; eight-colour prints on large parts consume a lot of filament.
- A 420 mm bed needs a careful mesh and a spare plate.
Alternatives
The Ender-5 Max is a 400 mm cube frame, faster on large parts and with an optional enclosure, but single-colour. The Neptune 4 Max is cheaper and slower with an 85 °C bed. The Kobra 3 Max is the choice when multi-colour at size is the point.
The units in the box
The listings are the Kobra 3 Max Combo bundle, the Kobra 3 Max alone and the Ender-5 Max.
FAQ
Can two ACE Pro units run together? Yes, for eight colours.
Is the Kobra 3 Max V2 different? Anycubic lists a V2 Combo; check the listing for what changed.
