Creality K1 Error 2522: Pressure Sensor Detects Nothing
LayerWalker is a participant in the Amazon Services LLC Associates Program. We may earn a commission when you buy through links on our site, at no extra cost to you.
Creality K1 error 2522 means the pressure sensor is not detecting anything: the collected data does not change when weight is placed on the heated bed. That is a test you can repeat yourself, and it is the clearest diagnostic in the whole levelling family. Creality attributes it to the Z-axis sensor chip being abnormal or the sensor being damaged.
A sensor that reports but does not respond to real force is more specific than one that simply returns nothing.
Where to buy

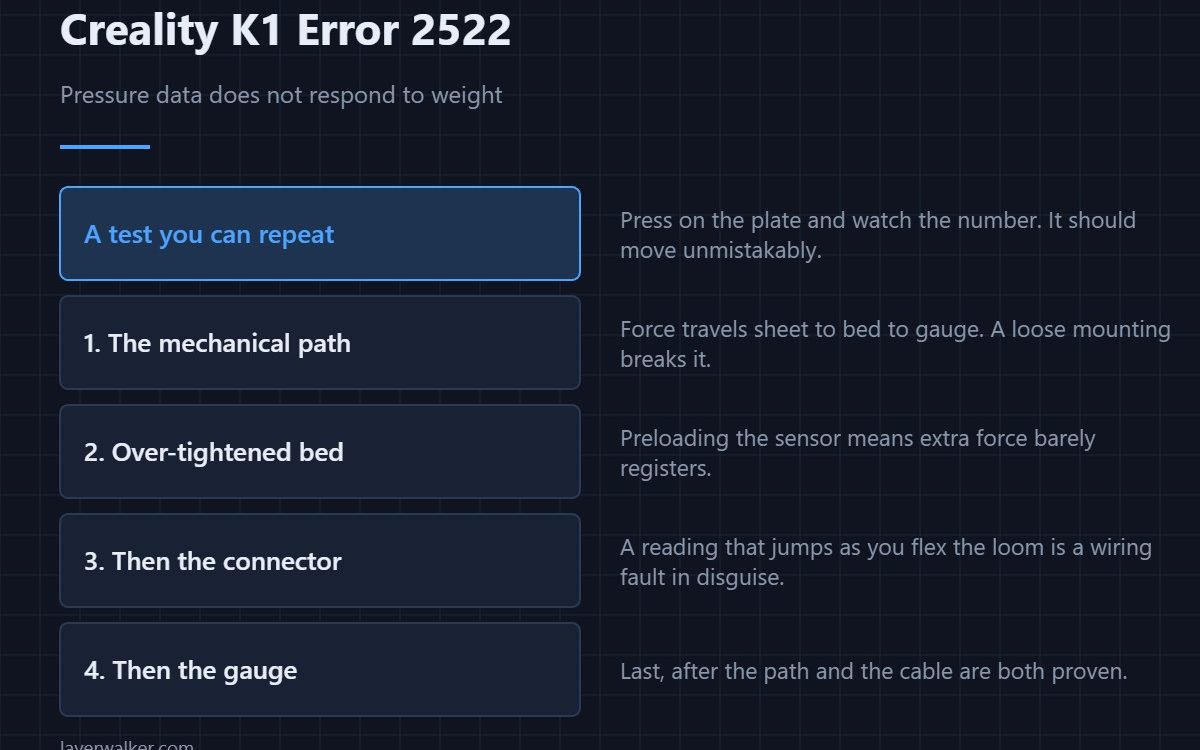

Repeat the test deliberately
Press down on the plate while watching the sensor reading. If the number does not move at all, the mechanical path from plate to gauge is broken, or the gauge is. If it moves slightly but far less than it should, you have a partial fault rather than a dead one.
Check what sits between plate and sensor
Force has to travel from the sheet, through the bed, into the gauge. A loose bed mounting, a shim that has shifted, or a sensor mount that has come adrift all break that path while leaving the electronics perfectly healthy. Look there before condemning the chip.
Then the electronics
Reseat the sensor connector and flex the loom while watching the value. A reading that jumps as you move the cable is a wiring fault that happens to look like an unresponsive sensor.

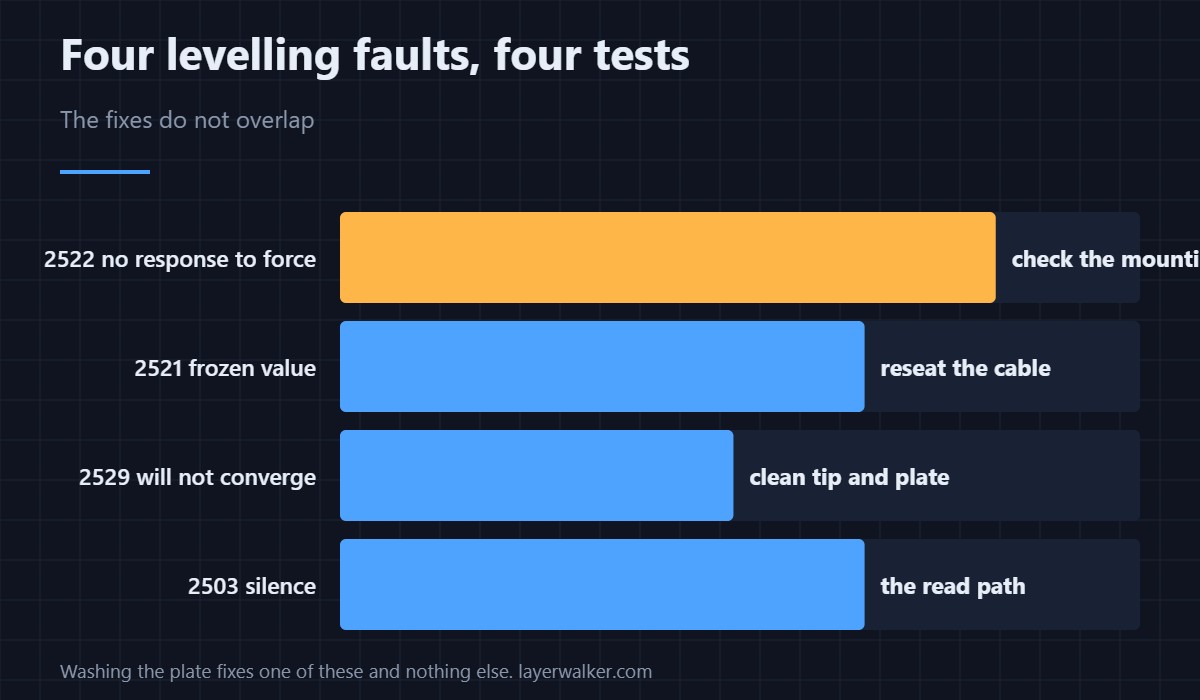

How Creality K1 error 2522 differs from the others
A value frozen at a fixed number is 2521. No data at all is 2503. Readings that will not converge over twenty attempts are 2529. This one is data that exists and does not respond to force, which is the only one with a physical test attached.
Why the distinction is worth keeping
Because the fixes diverge. Cleaning the nozzle and washing the plate help the convergence fault and do nothing here. Reseating connectors helps the data faults. Checking the bed mounting helps this one specifically, and nothing else in the family. How force probing works at all is in bed levelling sensors.
Creality K1 Error 2522 FAQ
Can I level manually instead?
No. The K1 has no manual path that bypasses this sensor.
How much should the reading change?
Enough to be unmistakable when you lean on the plate. A barely perceptible change is still a fault.
It appeared after I tightened the bed. Related?
Very possibly. Over-tightening can preload the sensor so that additional force barely registers.
Is the gauge or the amplifier more likely?
Neither, until you have checked the mechanical path and the connector. Those account for most of these.
Data that goes missing mid-measurement is a third failure shape again, and it has two causes rather than one: Creality K1 error 2523, wiring or a Z axis that stuck.
