HMS 0700-8900-0002-0004: Switching Detection Sensor Fault
LayerWalker is a participant in the Amazon Services LLC Associates Program. We may earn a commission when you buy through links on our site, at no extra cost to you.

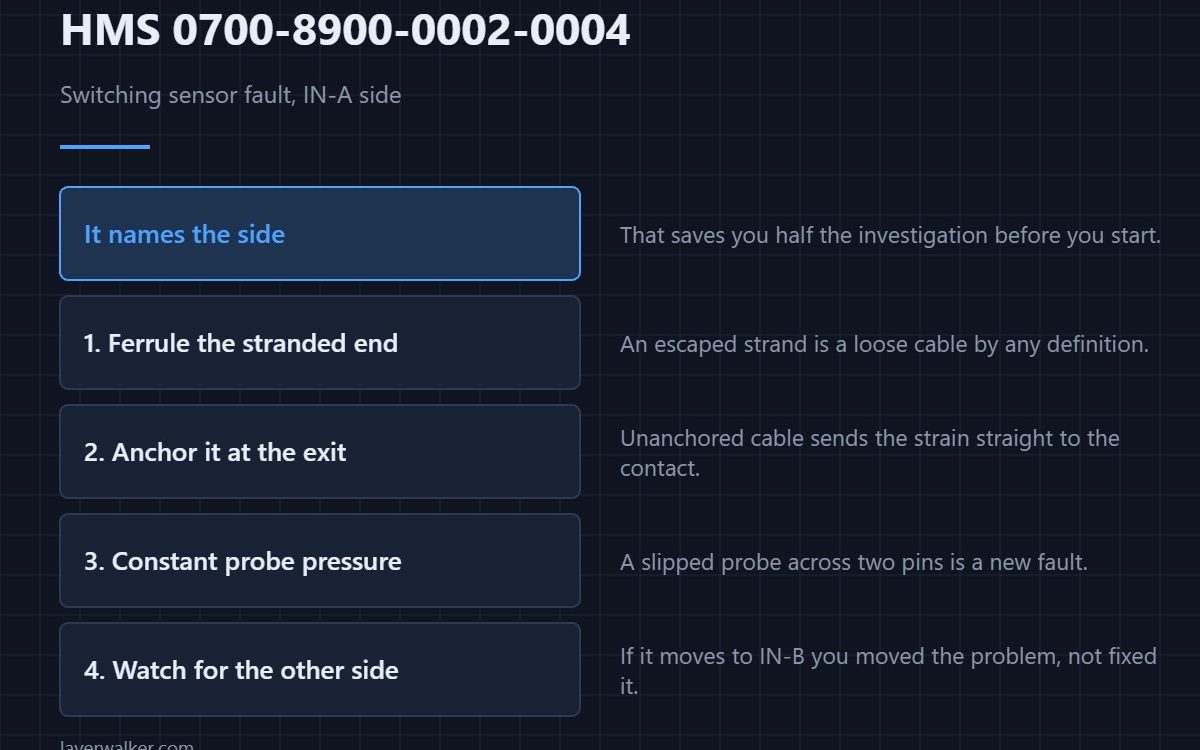

HMS 0700-8900-0002-0004 reports an abnormal switching detection sensor on the IN-A side of the Filament Track Switch, and says the cable on that side may be loose. The firmware is specific about which side, which saves you half the investigation.

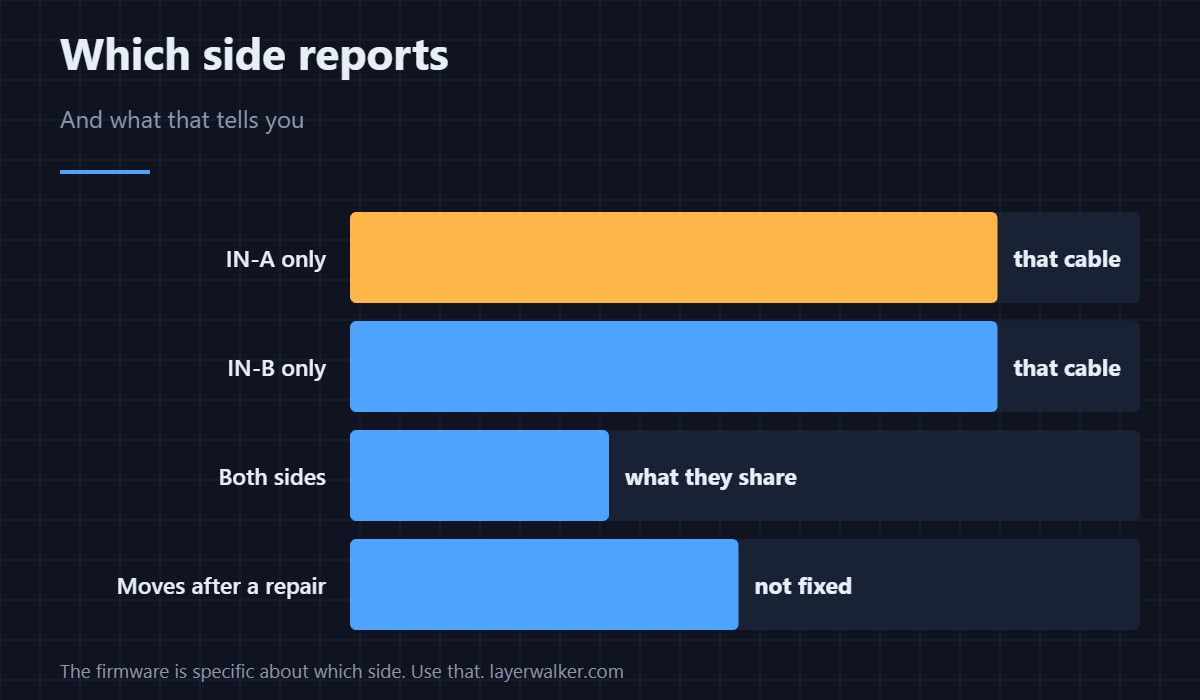

There is an identical message for the IN-B side. If you ever see both, stop suspecting sensors and start suspecting the common connector.
Where to buy
Terminate the repaired wire properly
A ferrule crimping tool with a set of ferrules turns stranded wire into a solid, repeatable end that a screw terminal will actually hold. A frayed strand that has escaped the clamp is a loose cable by any definition.
Stop the cable being pulled at the joint
A grommet and gland assortment gives the cable strain relief where it leaves the housing. Most cables that go loose were never anchored: the strain goes straight to the contact.
Test the pin without bending it
Spring-loaded test probes let you take a reading off a small pad or pin with constant pressure. A probe held by hand slips, and a slipped probe across two pins is a new fault.
Then reseat and watch for the other side
Reconnect the IN-A cable and run the switch. If the message moves to IN-B, you have moved the problem rather than fixed it, and the common connector is the place to look.
How HMS 0700-8900-0002-0004 differs from a coil fault
An abnormal coil resistance on the same side is HMS 0700-8D00-0002-0008, which is the actuator rather than the sensing.
When nothing answers at all
A module that is entirely offline is HMS 0700-7400-0001-0001. Order of work is in troubleshooting and layout in the AMS hub guide.
HMS 0700-8900-0002-0004 FAQ
What is IN-A?
One of the two inlets on the Track Switch. The other is IN-B.
Is the sensor replaceable?
The Wiki treats it as part of an assembly. Check the cable first.
Why does it say may be loose?
Because that is the common cause, not the only one.
Both sides at once?
Then look at what they share, not at the sensors.
Readers can work perfectly and still report nothing. HMS 0500-0400-0002-0010 means an AMS slot cannot identify the RFID tag, and the spool is a far more likely cause than the machine.
