HMS 0500-0400-0002-0031 means that before using a Laser or Cutting Module the pose of the BirdsEye Camera must be determined, and asks you to complete the setup to calibrate the camera. Pose is the camera position and angle, and the laser uses it to know where the bed actually is.
Skip it and every cut lands somewhere slightly different from where you placed it on screen.
Where to buy

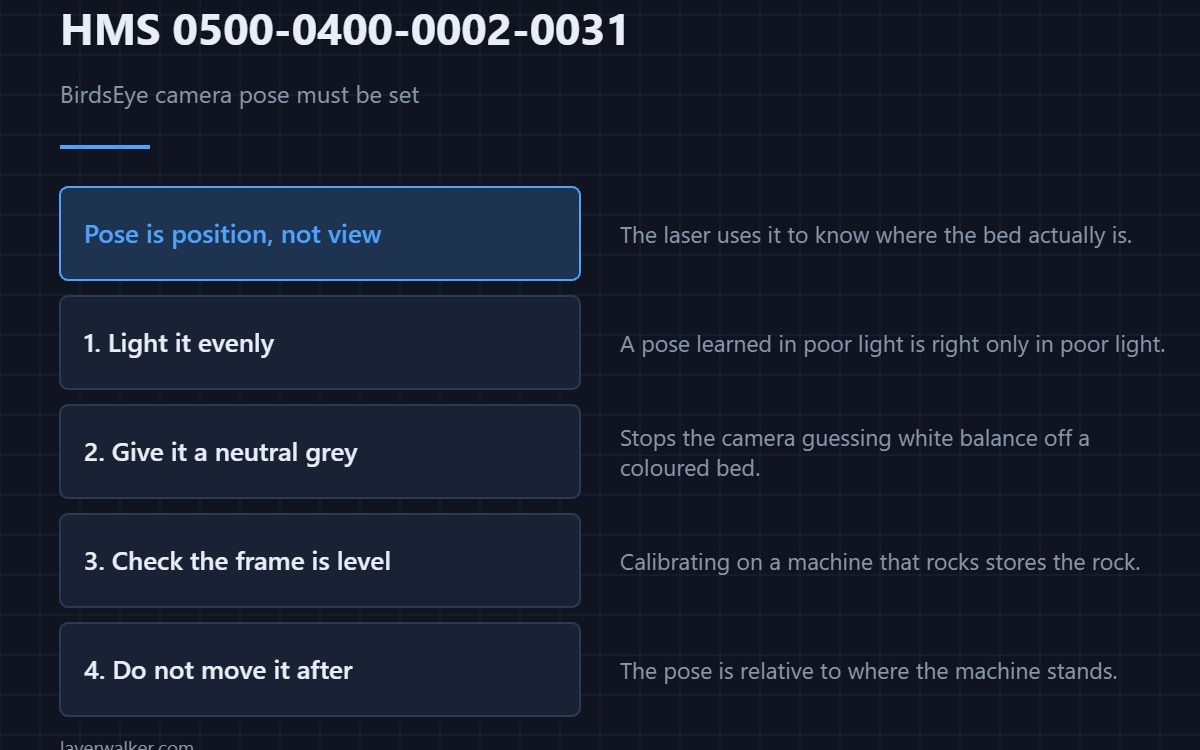

Light it evenly before you start
A small rechargeable LED panel removes the shadows that make a calibration pattern read inconsistently. A camera calibrating in poor light produces a pose that is right only in poor light.
Give the camera a neutral reference
An 18 percent grey card is what stops the camera guessing at white balance against a coloured bed. It costs very little and it makes every later camera feature behave more predictably.
Check the machine is actually level
Small bubble levels on the frame tell you whether the geometry the camera is learning is square to start with. Calibrating a pose on a machine that rocks stores the rock.
Then run the setup to the end
Follow the routine without skipping the confirmation step, and do not move the machine afterwards. The pose is relative to where it stands.
How HMS 0500-0400-0002-0031 differs from a missing camera

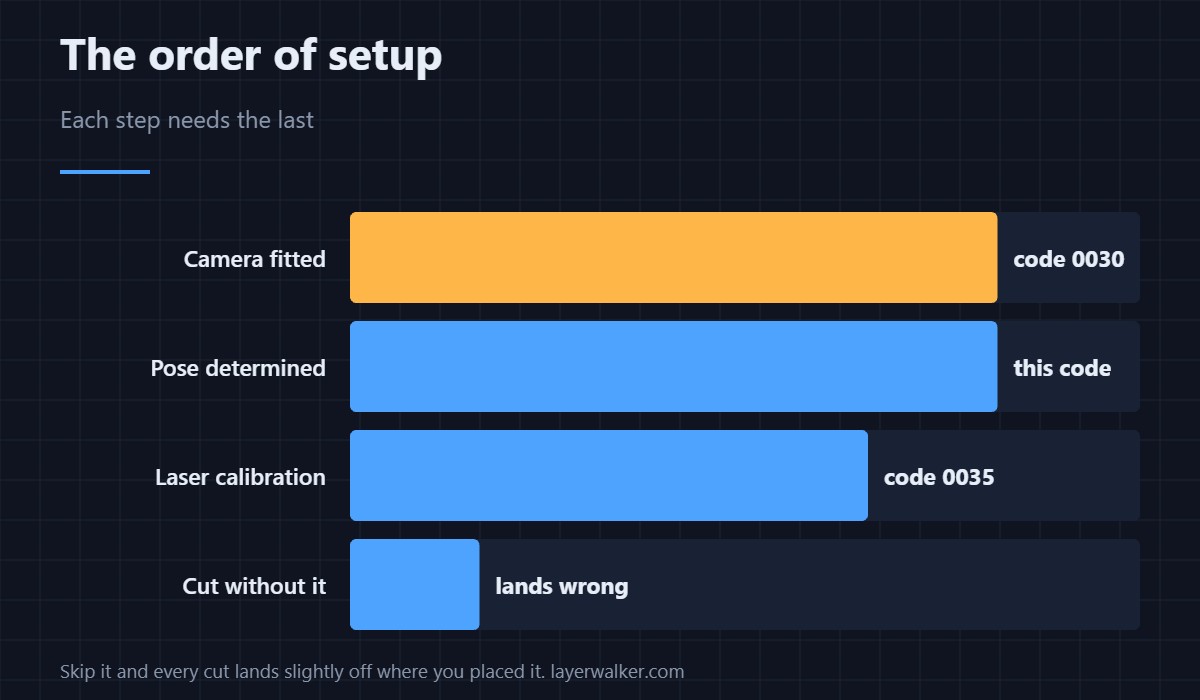

A camera that is not fitted at all is HMS 0500-0400-0002-0030. This code is a fitted camera whose position has not been learned.
What comes after it
Once the pose is known, the laser needs its own mounting calibration in HMS 0500-0400-0002-0035. Camera options are in printer cameras and the platform in the Bambu Lab H2D.
HMS 0500-0400-0002-0031 FAQ
How long does it take?
A few minutes. Do not rush the confirmation.
Do I redo it if I move the printer?
If anything about the mounting changes, yes.
Can I cut without it?
No. The machine needs the pose to place the cut.
Does lighting really matter?
For a camera learning geometry, measurably.
