Creality K1 Error 2295: MCU Restart Failed
LayerWalker is a participant in the Amazon Services LLC Associates Program. We may earn a commission when you buy through links on our site, at no extra cost to you.
Creality K1 error 2295 means an attempt to restart one of the controllers failed, and the message names which one. The printer was trying to recover from something on its own and could not. That makes this a second-order fault: something went wrong first, and the automatic repair also went wrong.
A controller that will not restart on command is usually one that is not being reliably powered or reliably reached.
Where to buy

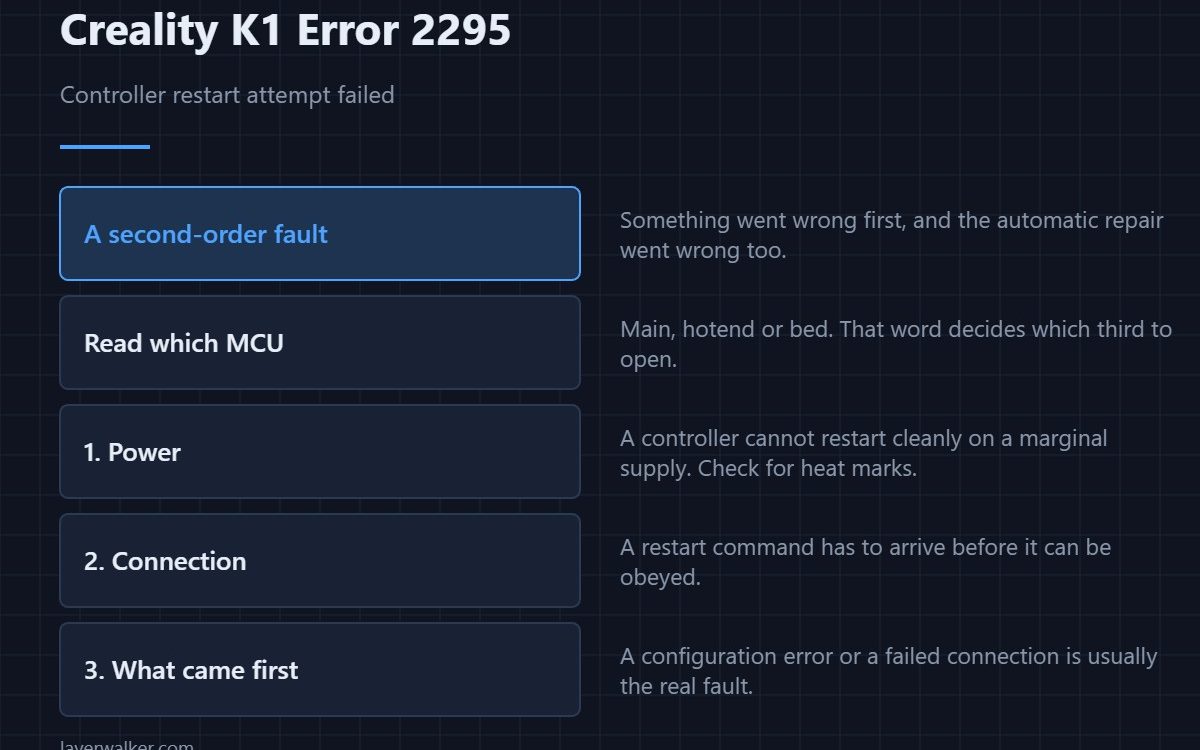

Read which MCU it names
Main, hotend or bed. That word decides which third of the machine to open, and it saves most of the work. The print head is reached through a loom that flexes; the bed through a high-current harness; the main board through the base.
Power first
A controller cannot restart cleanly if its supply is marginal. Check the power connector into the board, look for discolouration or a browned pad, and make sure the printer is on a wall socket rather than a long extension lead shared with something heavy.
Then the connection
A restart command has to arrive before it can be obeyed. Reseat the connectors on the path to the named controller with the machine unplugged at the wall. A pin pushed back into its housing looks seated and is not.
Then look for what came first

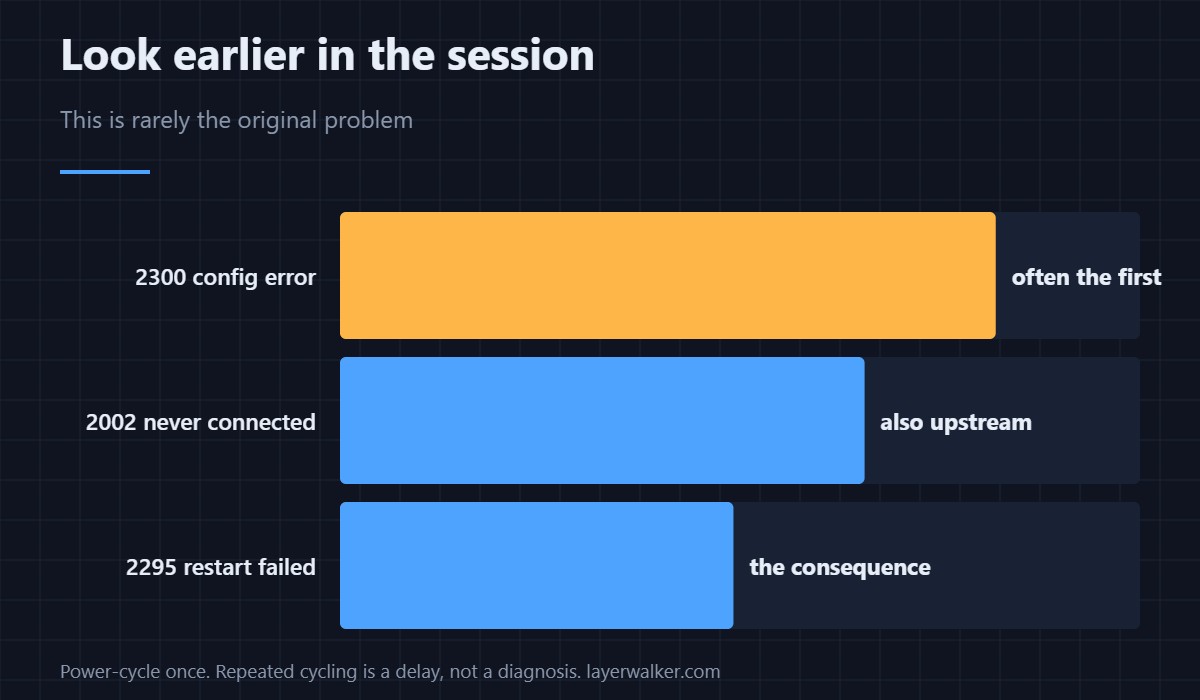

Something triggered the restart attempt. If you also saw a configuration error such as 2300, or a connection that was never established as 2002, that is the original fault and this is the consequence. Fixing the first one usually makes this disappear.
When Creality K1 error 2295 appears alone
Then the controller itself may be failing to come up. That is the point at which a part becomes a reasonable answer, but only after power and connections have been proven. A link reported as abnormal rather than unresponsive is 110, and one that answers too slowly is 2343.
Creality K1 Error 2295 FAQ
Should I power-cycle the printer?
Once, at the wall. If the fault returns immediately, stop cycling and start checking.
Does this mean a board is dead?
Not on its own. Supply and connection problems produce it far more often.
Can a firmware update cause it?
An interrupted update can leave a controller unable to start properly. If the fault began during one, mention that to support.
Is it safe to keep trying to print?
No. A controller that cannot be restarted reliably cannot be trusted to run a job.
Before the printer tries to restart a controller, it first tries to configure one. When that fails because the controller is closed, the code is Creality K1 error 2000.
