Original Prusa XL: The Toolchanger, and Who Needs Five Heads
LayerWalker is a participant in the Amazon Services LLC Associates Program. We may earn a commission when you buy through links on our site, at no extra cost to you.

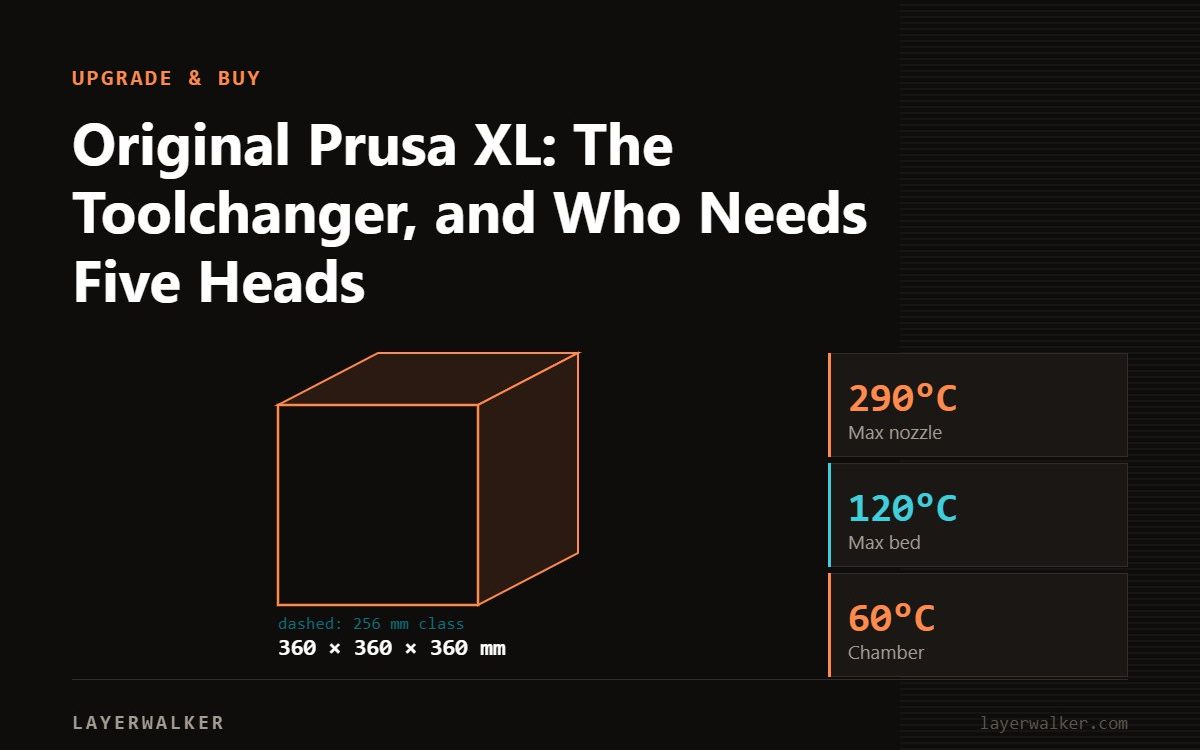

The Prusa XL+ is a 360 × 360 × 360 mm CoreXY with one to five independent toolheads, a 290 °C Nextruder per head, 120 °C segmented bed and an optional enclosure reaching 50 °C, 60 °C with a heater. A toolchanger swaps whole hotends, so multi-material prints have no purge waste and can mix nozzle sizes and rigid, flexible and soluble filaments in one job. It is a workshop machine; for hobby multi-colour, AMS-style systems are cheaper.
Where to buy
Specifications
| Item | Value | Note |
|---|---|---|
| Build volume | 360 × 360 × 360 mm | 46.7 litres |
| Toolheads | 1 to 5, add later | Active toolchanger; swaps in seconds |
| Max nozzle temperature | 290 °C per head | Nextruder, load-cell probing |
| Max bed temperature | 120 °C | Segmented bed heats only where needed |
| Chamber | Optional Enclosure XL+: 50 °C; 60 °C with heater add-on | XL+ only |
| Weight | 30 kg | Standard household outlet |
| Camera | Optional | Prusa Connect |
| Open source | Yes |
What a toolchanger solves
- No purge. AMS, CFS and MMU systems flush filament on every change; the XL swaps heads. A five-material job wastes nothing.
- Mixed nozzles. A 0.25 mm head for detail and a 0.8 mm head for infill in the same print.
- Incompatible materials. Rigid PETG, flexible TPU and soluble support each keep their own hotend; no cross-contamination.
- Print farms. Segmented bed and toolheads that can be swapped without recalibration.
Who does not need it
Anyone whose multi-colour need is PLA logos and toys; the purge on an A1 Combo is a nuisance, not a cost that justifies this machine. Anyone who needs a heated chamber more than tools; the Bambu H2D reaches 65 °C with two nozzles, see XL vs H2D. Anyone who needs 400 mm; the XL is 360 mm.
Buying path
Start with one toolhead and add heads later; the frame is ready. The Enclosure XL+ is a separate purchase and only fits the XL+. Keep a second sheet on hand.
The units in the box
The listings are the XL assembled with one toolhead, the CORE One+ for the smaller enclosed option and the MK4S assembled. Prusa direct is the usual purchase route.
FAQ
Can the XL print two objects at once? No; the tools share one gantry and print sequentially within a layer.
Is the XL enclosed? Not by default; the enclosure is optional.
