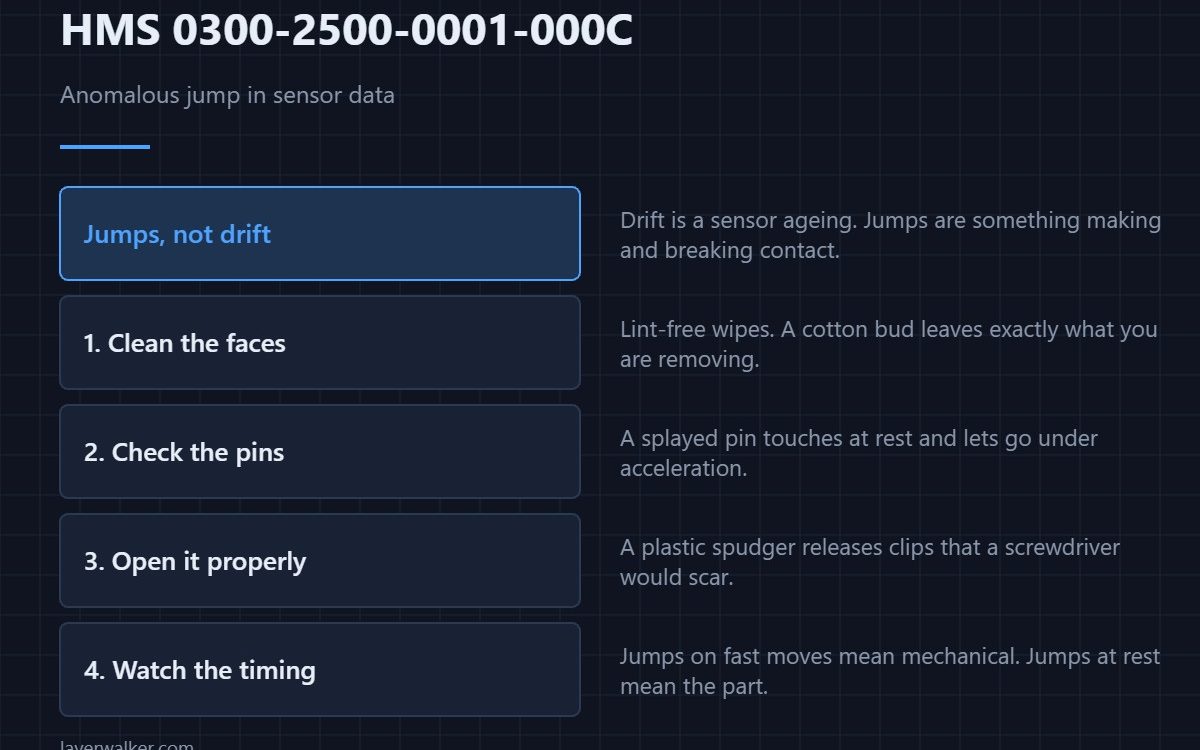

HMS 0300-2500-0001-000C means an anomalous jump in data was detected from the extruder eddy current sensor, caused by poor sensor contact or a faulty sensor. A reading that leaps rather than drifting is the signature of an intermittent connection.
Drift is a sensor ageing. Jumps are something making and breaking contact while the head moves.
Where to buy
Clean the contact faces
Flux residue, fingerprints and filament dust all sit between a pin and its socket. Lint-free cleanroom wipes with isopropyl lift that off without leaving fibres behind, which is exactly what a cotton bud would do.
Check the pins before you blame the part
A splayed or recessed pin makes contact at rest and loses it under acceleration, which is why the fault only shows mid-print. Fine-tipped precision tweezers let you straighten one without crushing the housing.
Open the housing without breaking it
A plastic spudger separates clipped covers and releases latches that a screwdriver would scar or crack. On a toolhead where every cover is a clip, it is the tool that keeps the repair invisible, and it belongs in the same drawer as the rest of the 3D printer tool kit.

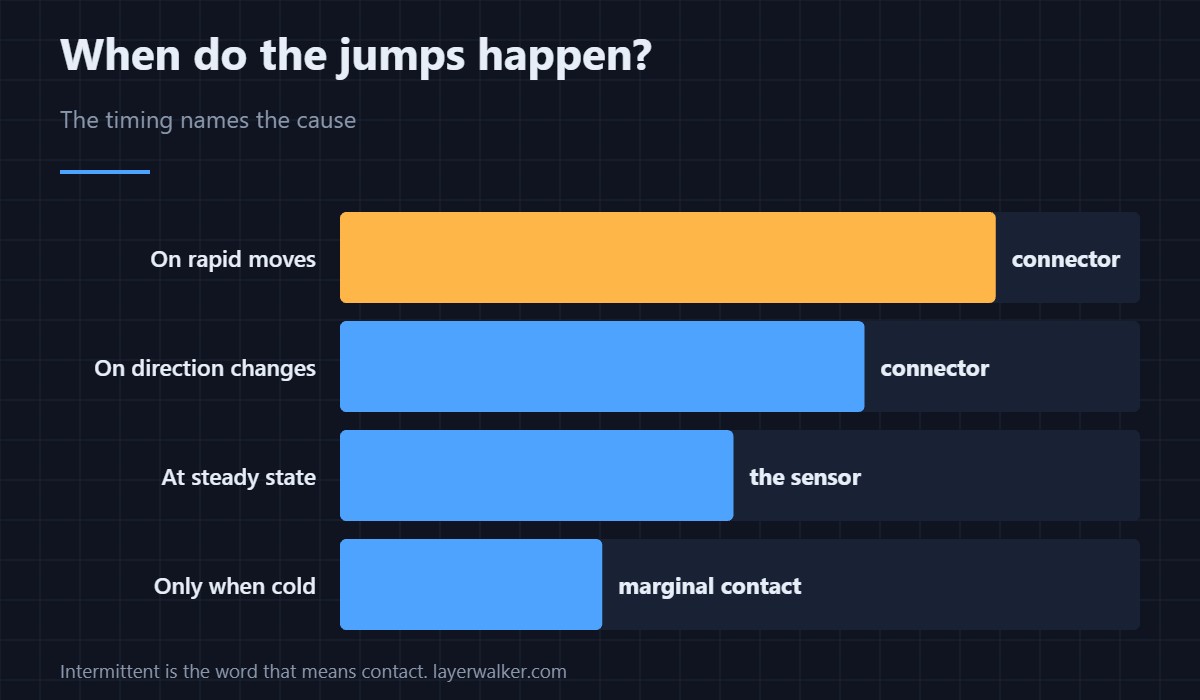

Watch for the pattern in the timing
If the jumps cluster around rapid moves or fast direction changes, the cause is mechanical and the connector is the place to look, and the tools for that are in the 3D printer tool kit. If they appear at steady state, the sensor itself is the likelier answer.
How HMS 0300-2500-0001-000C sits next to the other two
Total silence is HMS 0300-2500-0001-0003, and continuously wrong data is HMS 0300-2500-0001-0004. Intermittent jumps are this code, and that word intermittent is what points at contact.
Rule out the obvious mechanical cause
Material build-up around the nozzle changes what the sensor sees from pass to pass. Clearing that first costs nothing — the methods are in clearing a clogged nozzle.
HMS 0300-2500-0001-000C FAQ
Why only sometimes?
Because movement makes and breaks the contact. Steady faults look different.
Can I just ignore it?
No. Offsets calibrated from jumpy data are wrong offsets.
Should I re-crimp the connector?
Only if cleaning and reseating fail, and only with a proper crimp tool.
Does cold weather matter?
Marginal contacts do get worse as parts contract. It is still a contact fault.
