HMS 0300-1C00-0001-0001: extrusion motor driver abnormal, possible MOSFET short
LayerWalker is a participant in the Amazon Services LLC Associates Program. We may earn a commission when you buy through links on our site, at no extra cost to you.

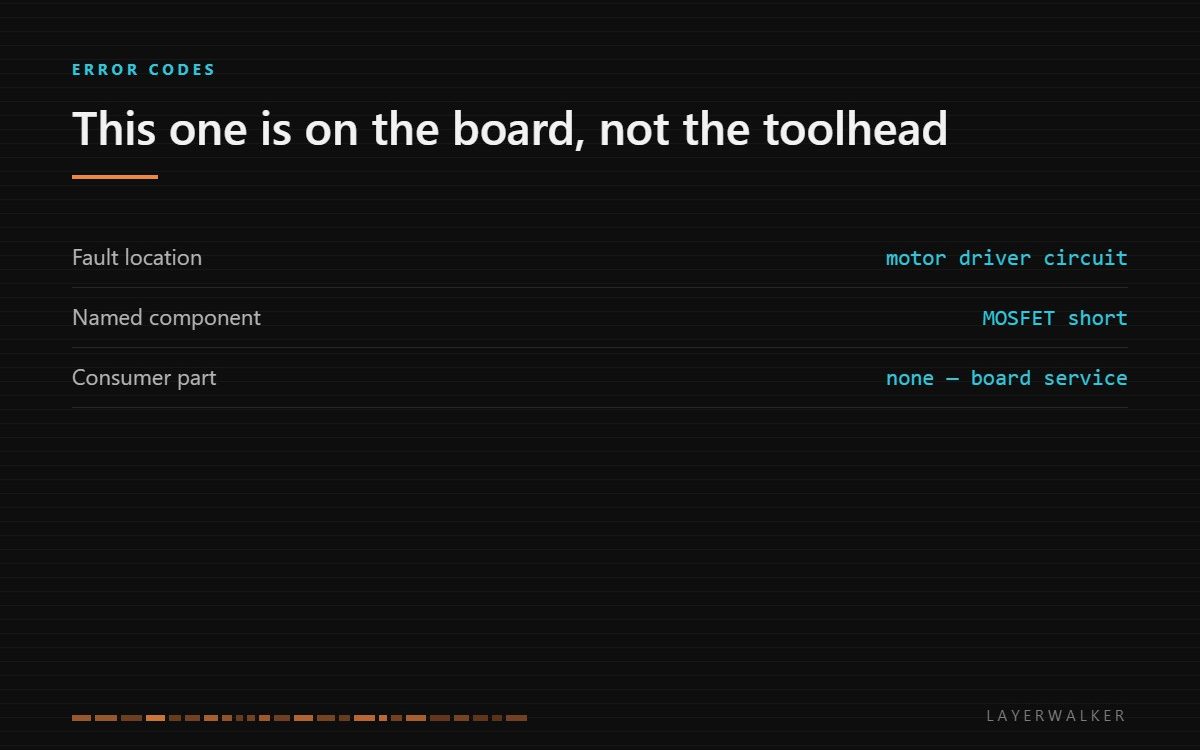

The driver circuit that powers the extrusion motor is reporting a fault, and the firmware names a possible MOSFET short. This is a board-level problem. No consumer replacement part exists, so the value of this page is proving it before you pay for a repair.
Affected machines: A2L, H2, P2S, X1 series. A MOSFET is the switching transistor that feeds current to one phase of the motor. When one shorts, the driver loses control of that phase and the controller stops rather than letting it run.
Where to buy
Proving it is the board, not the motor
This matters because the symptom looks identical to a motor fault from the outside, and motors are cheap while boards are not. The test is to move the fault: if the same channel misbehaves with a known-good motor attached, the channel is at fault.
Do the full power cycle first. A driver can latch into a protective state after a transient, and a cold boot with the capacitors drained clears that. A menu restart does not.
Machine halts with the driver fault, often immediately at a move command rather than mid-print
Shorted MOSFET in the driver stage, or a latched protection state
- Power off at the wall, wait thirty seconds so the boards fully reset, and power back on. A latched protection state clears here.
- If it returns, power off and unplug the extrusion motor, then check its coils with a meter to rule the motor in or out.
- If the motor reads healthy, swap it onto another identical channel and see whether the fault follows it.

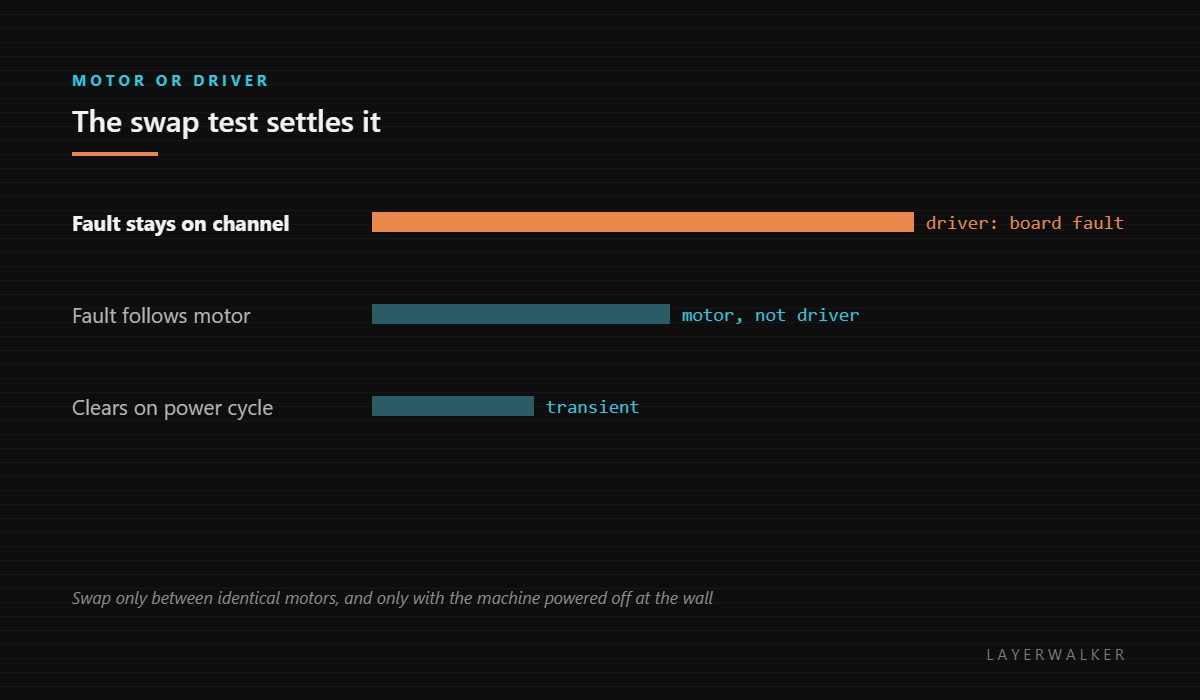

- A fault that stays on the original channel with a good motor attached is a driver fault on the board.
- Record the code and what you tested before contacting service; it shortens the exchange considerably.
What not to do: repeatedly power cycling to get one more print out of it. A shorted switching device can fail further, and the next failure can take the motor with it.
Our page on stepper motors covers the coil measurements referenced above and how to tell a dead motor from a dead driver in general. The troubleshooting index covers which family a symptom belongs to.
FAQ
Can I replace just the MOSFET? Only with surface-mount rework skills and a schematic. For almost everyone this is a board replacement.
Will a new motor fix it? Not if the fault stays on the channel. Test before buying.
Is it safe to keep trying? No. A shorted switching device can fail further and damage what is connected to it.
Why does it clear sometimes? Protective latching. Clearing is not the same as being fixed.
