HMS 0300-1800-0001-0004: extrusion force sensor signal abnormal
LayerWalker is a participant in the Amazon Services LLC Associates Program. We may earn a commission when you buy through links on our site, at no extra cost to you.
The extrusion force sensor is returning a signal the controller does not trust. This sensor is how the machine feels resistance in the filament path, so losing it loses jam detection as well as calibration.
Affected machines: A1 Mini, A2L, H2S, P2S.
Where to buy

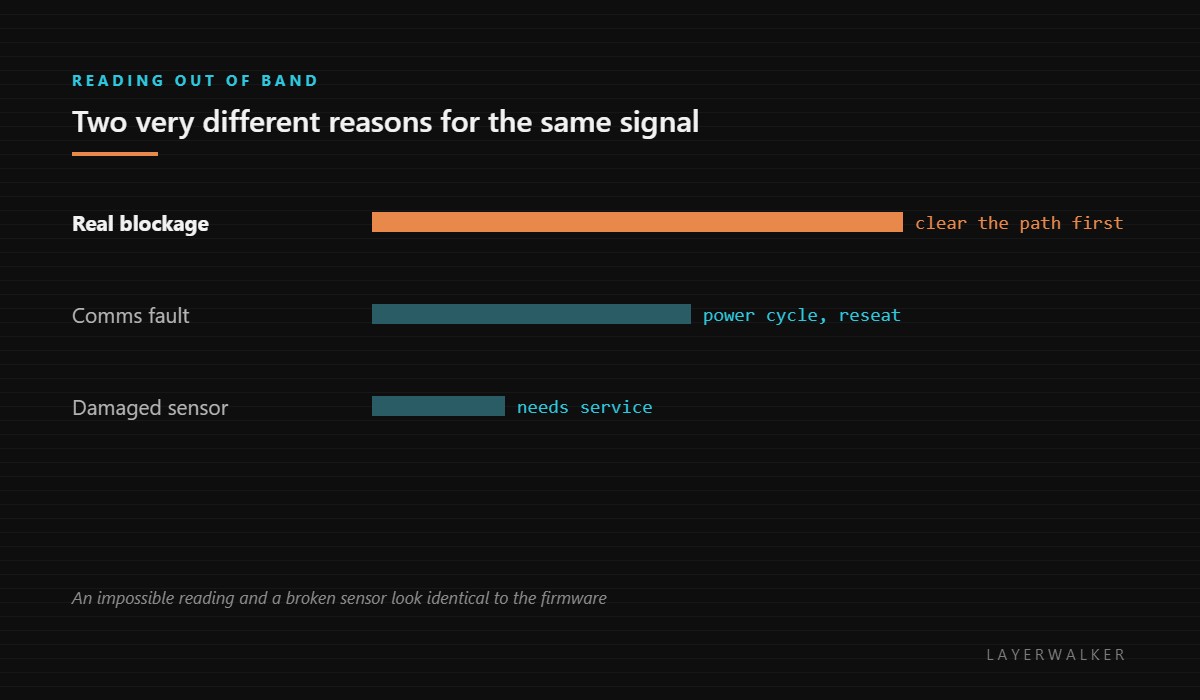

Why a blockage can fake a sensor fault

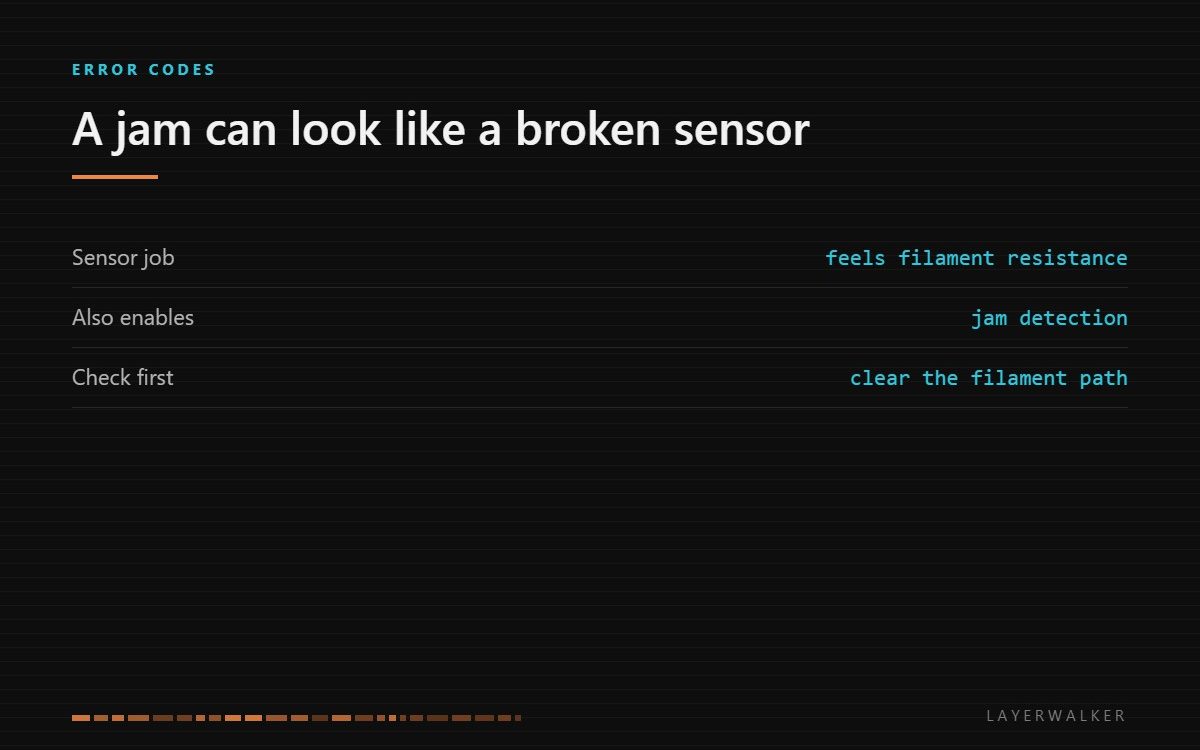

This sensor measures how hard the extruder is pushing. That is how the printer notices a jam before it ruins a print. But the relationship works in both directions: a genuine blockage puts the reading far outside its normal band, and the firmware cannot always tell an impossible reading from a broken sensor.
So clearing the filament path is not a detour on the way to diagnosing this code. It is part of the diagnosis, and it is the step most likely to make the code go away.
Code appears during loading, during calibration, or when the machine tries to detect a jam
Damaged force sensor, or abnormal MC to toolhead communication
- Power off at the wall for thirty seconds and power back on, which clears transient communication faults.
- Reseat the toolhead cable at both ends and inspect the flexing section for damage.
- Remove filament and check the extruder path for a blockage pressing on the sensor, which can produce an out-of-range reading from a healthy sensor.
- Clean filament dust from around the drive gears, since accumulated debris changes what the sensor feels.
- If the fault survives a clean path and a reseated cable, the sensor itself needs service.
This is one of the codes where no consumer-level replacement part exists. The sensor is integrated into the toolhead assembly, so a genuine sensor failure is a warranty or service question rather than a shelf part. What is listed below are the tools to diagnose it, not a part to swap.
The troubleshooting index covers which family a symptom belongs to, and sensors and thermistors covers how the machine reads its own hardware.
FAQ
Can I buy the sensor separately? Not at consumer level on these machines. It is part of the toolhead assembly.
Is a restart worth trying? Yes, and do a full power cycle rather than a menu restart. Communication faults often clear.
Will it damage anything if I keep printing? The firmware halts rather than continuing, which is the protection working.
How do I know it is the cable and not the sensor? Reseat both ends and watch whether the fault follows toolhead position.
