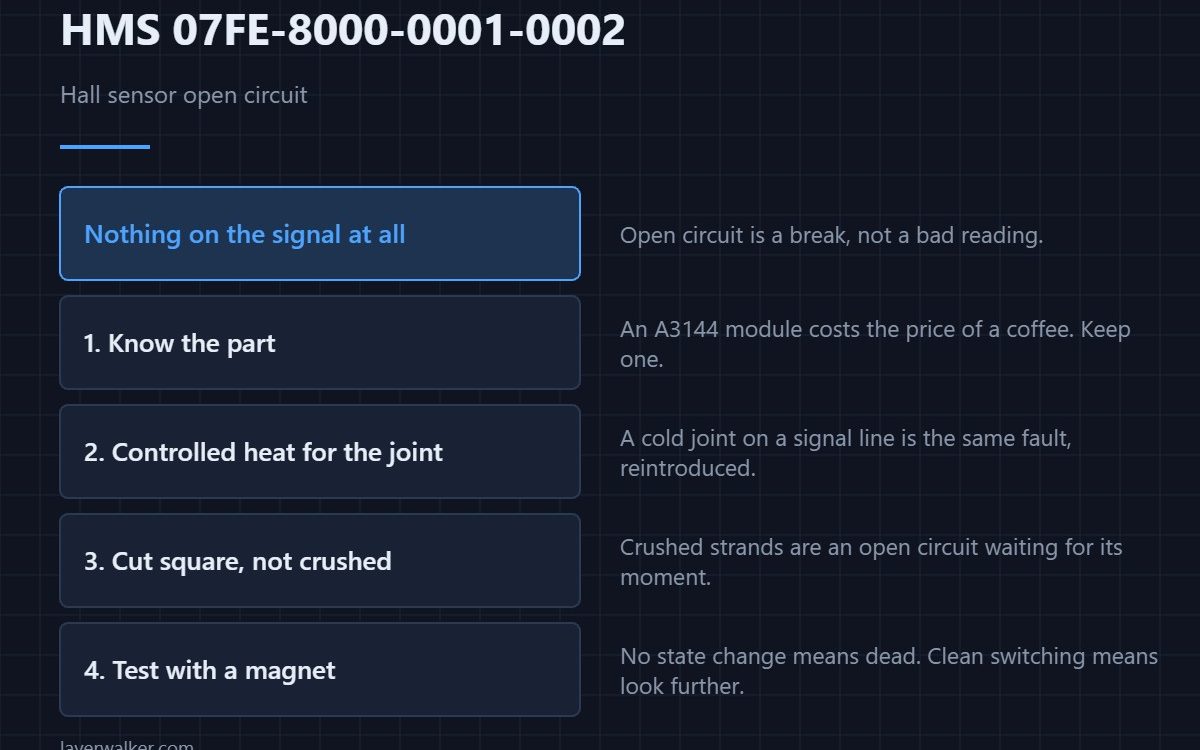

HMS 07FE-8000-0001-0002 means the Hall sensor that detects the extruder switching angle is open-circuited, and asks you to check whether the sensor is malfunctioning. Open circuit means the machine sees nothing at all on that signal, which is a break rather than a bad reading.
A Hall sensor is a three-wire part with no moving pieces. When one fails open it is almost always the wiring or a joint rather than the silicon.
Where to buy
Know what the part actually is
These are ordinary Hall effect sensor modules built around an A3144 or 3144E. A five-pack costs the price of a coffee, and having one on the bench lets you prove a replacement works before you commit to the repair.
Make a joint that lasts
A temperature-controlled soldering station matters more than the iron tip on a three-wire sensor in a moving loom. A cold joint on a signal line is exactly the fault you are trying to clear, reintroduced.
Trim without stressing the conductor
Flush cutters leave a clean square end that seats properly in a crimp or a solder joint. Snipping with scissors crushes the strands, and a crushed conductor is an open circuit waiting for its moment.
Then test the signal, not the part

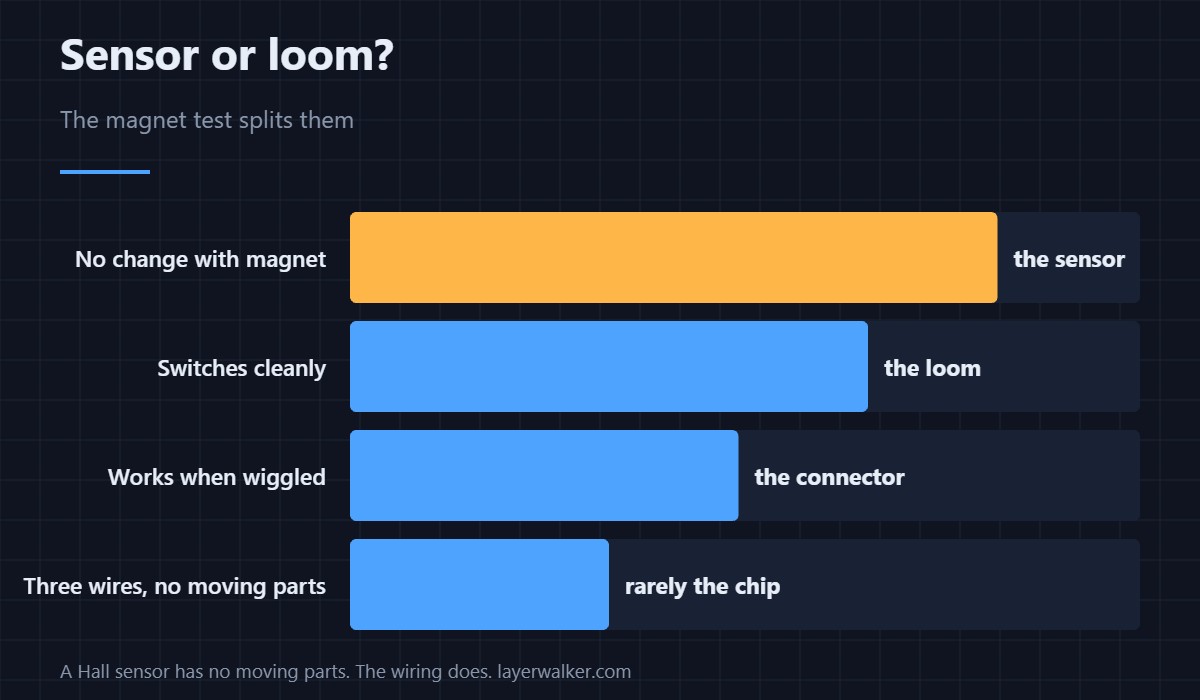

Hold a magnet near the sensor while watching continuity on the output. A sensor that never changes state is dead; one that switches cleanly means the break is further along the loom.
How HMS 07FE-8000-0001-0002 differs from a cable fault
A board that drops out mid-move is HMS 07FE-8000-0001-0006. This code is one signal that is permanently absent rather than a connection that comes and goes.
When the motor side reports instead
The switching motor has its own family in HMS 07FE-8100-0001-0001. General method is in troubleshooting and the machine in the Bambu Lab H2D.
HMS 07FE-8000-0001-0002 FAQ
Can I test it with a magnet?
Yes, and that is the fastest honest test there is.
Is the sensor a common part?
The chip is. The assembly in your toolhead may not be.
Will the printer still run?
Not switching. It cannot confirm which extruder is in place.
Open or short, which is worse?
Neither. They are opposite failures of the same signal.
Optical signals fail the same way in the AMS. HMS 0700-0200-0002-0002 means the filament odometer has no signal at all, and since it counts pulses from a slotted wheel, silence is a very testable thing.
