HMS 0500-0400-0002-0037: Cutting Module Needs Calibration
LayerWalker is a participant in the Amazon Services LLC Associates Program. We may earn a commission when you buy through links on our site, at no extra cost to you.

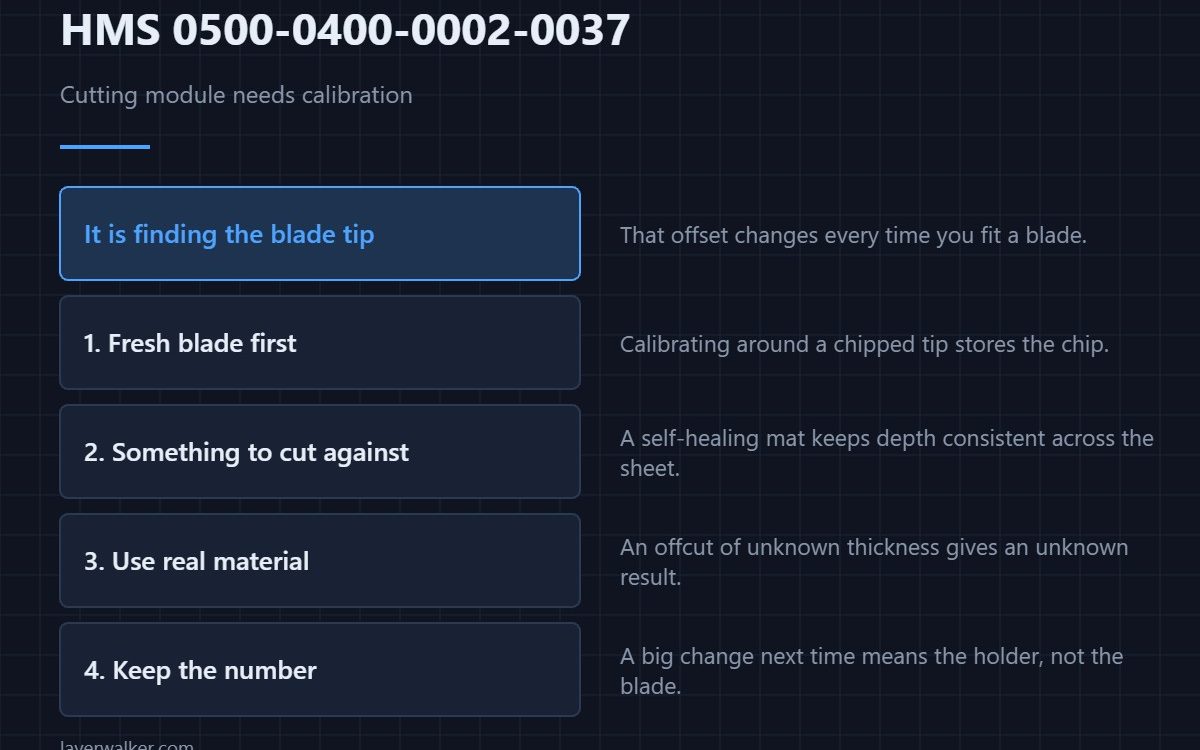

HMS 0500-0400-0002-0037 means the cutting module requires calibration to obtain an accurate blade tip position, and asks you to perform the mounting calibration before use. It takes roughly two to four minutes and it decides where every cut lands.
A blade tip sits a few millimetres from where the holder is clamped, and that offset changes every time you fit a blade.
Where to buy
Start with a blade that is actually sharp
Replacement 45 degree blades are consumable, and calibrating around a chipped tip stores the chip as your reference. Fit a fresh blade first, then calibrate.
Give the material something to cut against
A self-healing cutting mat under the work stops the blade scoring the bed and keeps the depth consistent across the sheet. It is the surface the calibration assumes exists.
Calibrate on the material you will use
Adhesive vinyl sheets are cheap enough to burn a test pass on and consistent enough to be a reference. Calibrating on an offcut of unknown thickness gives an unknown result.
Then run it and keep the number
Let the routine finish and note the figure. If it changes markedly next time you fit a blade, something in the holder has moved rather than the blade.
How HMS 0500-0400-0002-0037 differs from the camera step
The camera pose comes first and is HMS 0500-0400-0002-0031. This code is about the blade, not about where the bed is.
When the module reports a sensor instead
A force sensor fault on the cutting module is HMS 0300-2800-0001-0001. Finishing work is covered in deburring tools and the platform in the Bambu Lab H2D.
HMS 0500-0400-0002-0037 FAQ

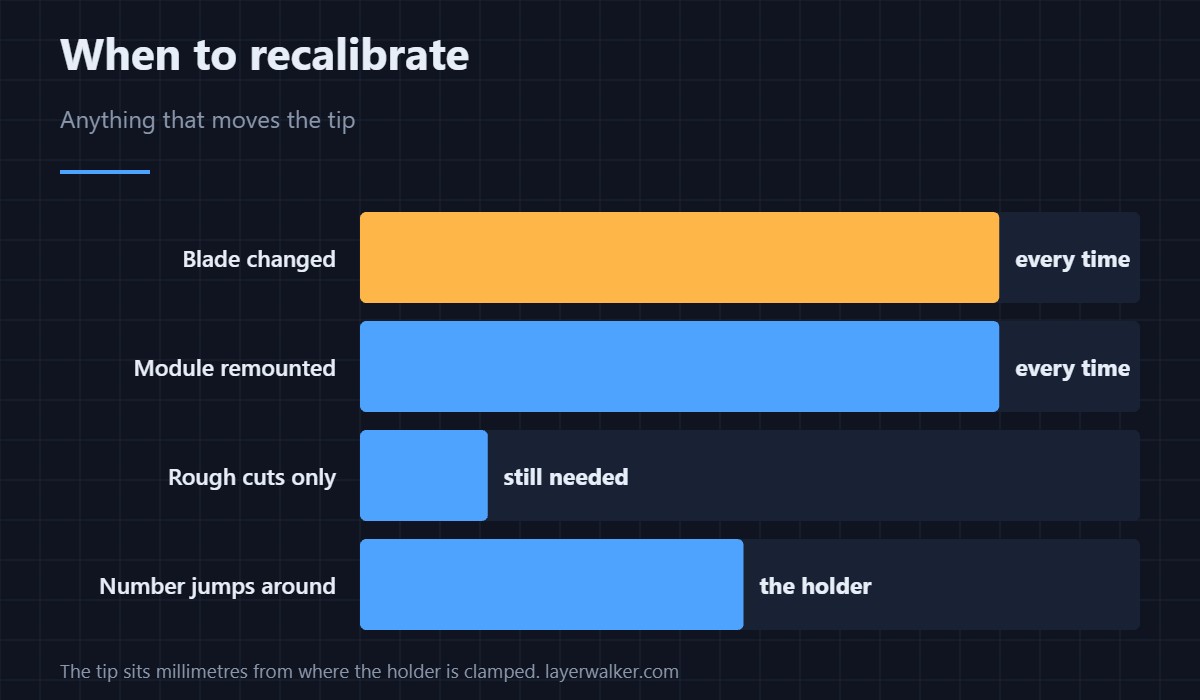

How often do I recalibrate?
Whenever you change the blade or remount the module.
Can I skip it for rough cuts?
No. Depth and position both depend on it.
What if the number jumps around?
Suspect the holder rather than the blade.
Does blade angle matter?
Yes. Match the blade to the material you cut most.
