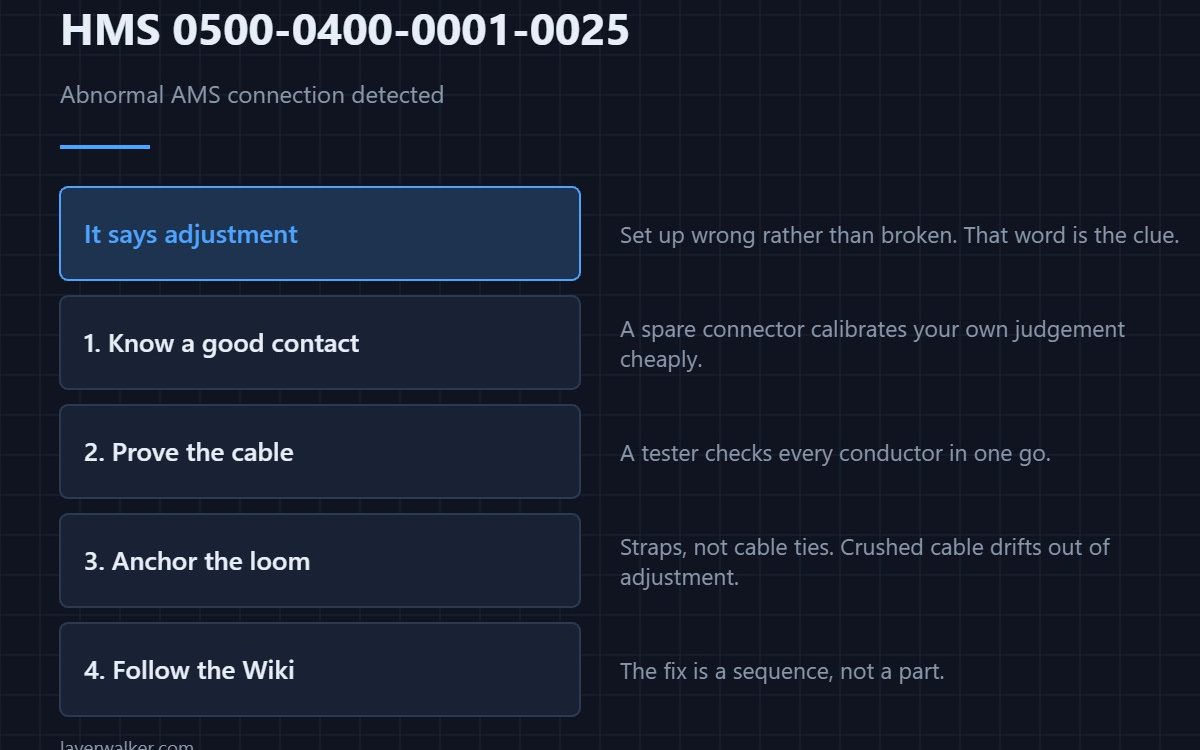

HMS 0500-0400-0001-0025: Abnormal AMS Connection
LayerWalker is a participant in the Amazon Services LLC Associates Program. We may earn a commission when you buy through links on our site, at no extra cost to you.

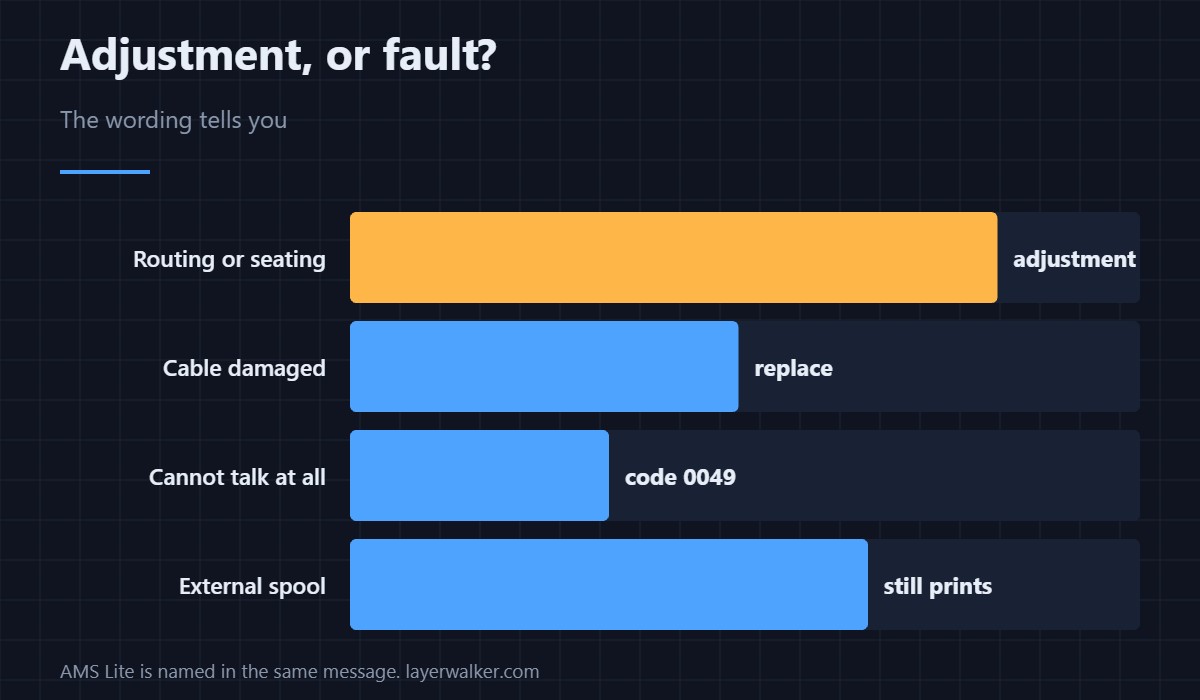

HMS 0500-0400-0001-0025 means an abnormal connection between the AMS or AMS Lite and the device has been detected, and refers you to the Wiki for adjustment. The word adjustment matters: the machine is suggesting something is set up wrong rather than broken.
On an AMS that means the cable, the tube routing or the way the unit sits relative to the printer.
Where to buy
Know what a good connector looks like
Circular aviation connectors are the same class of part used for module links, and having a pair on the bench shows you what a clean, fully-seated contact feels like. It is a cheap way to calibrate your own judgement.
Prove the cable rather than suspecting it
A network cable tester with a remote end checks continuity on every conductor of a multi-way cable in one go. That turns an hour of guessing into a result you can trust.
Route it so it stays adjusted
Reusable hook-and-loop straps hold the loom away from the gantry without crushing it the way a cable tie does. Most connections that drift out of adjustment were never anchored.
Then follow the Wiki adjustment
Work through the official procedure rather than improvising. The message points there because the fix is a sequence, not a part.
How HMS 0500-0400-0001-0025 differs from a comms error
A failure to talk to the unit at all is HMS 0500-0400-0001-0049. This code is about the physical arrangement being wrong.
When a module connector is simply out
An unplugged module gives HMS 0500-0400-0002-0033. The layout is in the AMS hub guide and the system in printers with an AMS.
HMS 0500-0400-0001-0025 FAQ
Does it affect AMS Lite too?
Yes, the message names both.
Can I print on a single spool?
Usually, from the external holder.
What does adjustment mean here?
Positioning, routing and seating rather than replacing anything.
Is the cable usually at fault?
Check it, but routing is the more common cause.
