HMS 0300-C200-0001-0002: Hall sensor of the filter switch flap
LayerWalker is a participant in the Amazon Services LLC Associates Program. We may earn a commission when you buy through links on our site, at no extra cost to you.

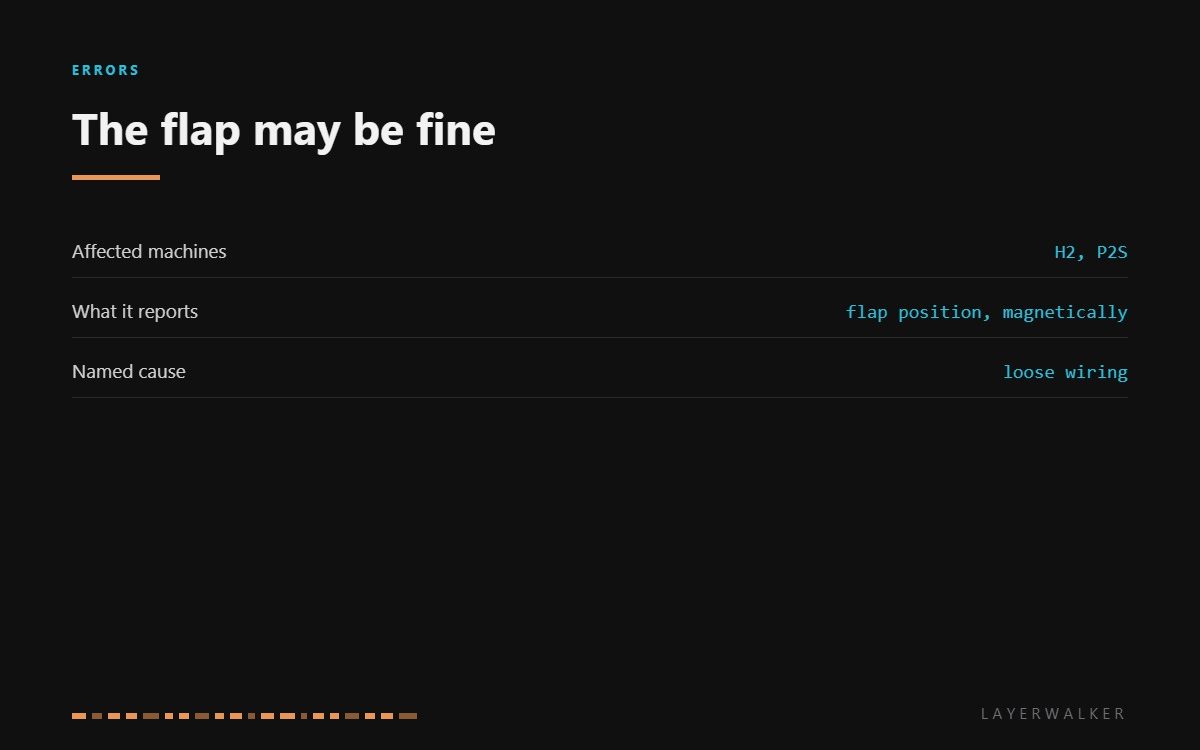

HMS 0300-C200-0001-0002 means the Hall sensor that reports the filter switch flap’s position has stopped answering, and Bambu points at the wiring. The distinction worth holding on to is that the flap may be moving perfectly. What has failed is the printer’s ability to confirm where it ended up, and a machine that cannot confirm a safety-relevant position stops rather than guesses.
Affected machines: H2 and P2S. A Hall sensor detects a magnet on the moving part, so there is no contact to wear and very little to fail in the sensor itself. That is precisely why the wiring is the first suspect rather than the last.

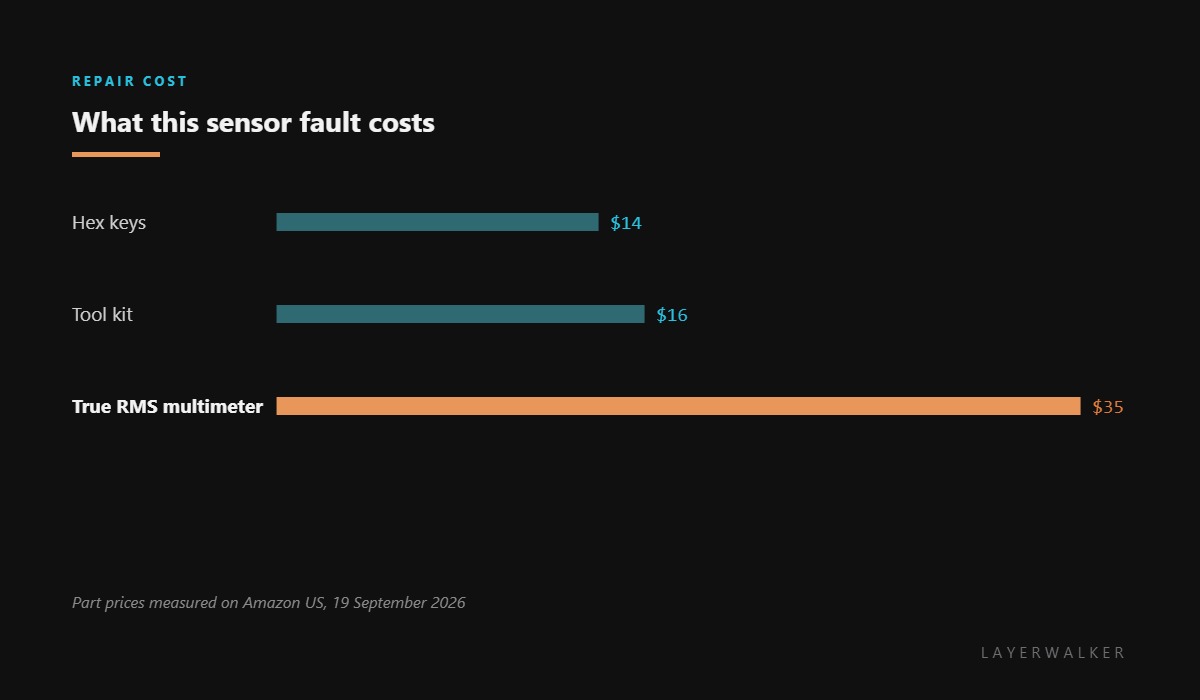

Where to buy
Wiring, magnet, then sensor
Start at the connector. This sensor sits on an assembly that moves and lives in a dusty air path, so a plug that has worked loose or a pin that has backed out of its housing is the most likely explanation by a wide margin.
Then the magnet. Hall sensors need the magnet to pass within a small distance, and a magnet that has come adrift from the flap, or a flap that no longer reaches its end stop because it is binding, produces a sensor that reports nothing while being perfectly healthy.
Only then the sensor. If the wiring is sound, the magnet is present and the flap reaches both ends of its travel, the sensor or its board is what remains. Neither is a retail part on these machines, so that is a ticket rather than a purchase.
Printer reports the filter switch flap Hall sensor is malfunctioning
Loose or damaged wiring, a displaced magnet, or a flap not reaching its end stop
- Power off at the wall and let the chamber cool.
- Find the Hall sensor on the filter flap assembly and reseat its connector at both ends.
- Follow the loom for a chafed section where it passes the moving assembly.
- Move the flap by hand and confirm it reaches both ends of its travel, since a binding flap never reaches the sensor.
- Check that the magnet on the flap is still present and secure.
- Power up and watch the flap during the start-up self-test, which is when the position check runs.
If the flap binds, fix that first and retest. A sensor reporting nothing because the magnet never arrives is indistinguishable from a failed sensor until you free the mechanism.
The mechanical version of this fault is filter switch flap malfunction, and the drive-side fault is the filter flap current sensor. Our page on extraction and filtration explains the air path, and the troubleshooting index covers the rest.
HMS 0300-C200-0001-0002 FAQ
Is the flap broken?
Often not. This code is about position reporting, and the flap itself may be moving correctly.
Can I print with it?
PLA and PETG, yes. Hold off on ABS and ASA until the machine can confirm the filter is engaged.
Can I buy the Hall sensor?
Not as a retail part. What you can act on is the wiring, the connector and the magnet.
Why does a binding flap look like a sensor fault?
Because the sensor only reports when the magnet reaches it. A flap that stops short never triggers it.
