Creality K1 Max Build Plate: The Larger Plate, and What a Replacement Must Match
LayerWalker is a participant in the Amazon Services LLC Associates Program. We may earn a commission when you buy through links on our site, at no extra cost to you.

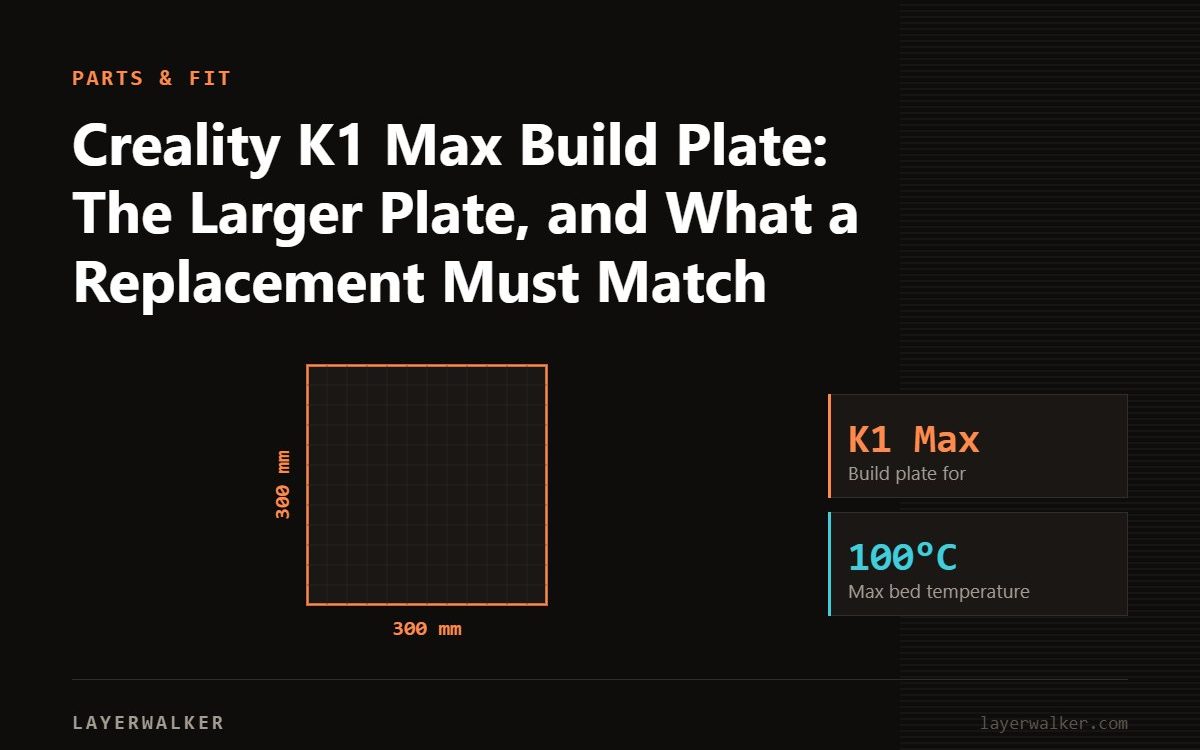

The K1 Max takes its own plate, sized for the 300 by 300 mm bed and larger than the 235 mm K1 and K1C plate. Buy a textured PEI plate listed for the K1 Max; at this size thick spring steel matters because thin plates bow on the magnet. Add a smooth side or a second smooth plate for glossy PLA and for ABS with glue.
A larger plate has larger problems. A thin steel sheet at 300 mm plus bows between magnet points and prints an uneven first layer that the mesh cannot fully hide, and a coating that wears in the centre wears faster because the K1 Max prints more PETG and ABS per plate than a small printer does. Choose a plate for the K1 Max by thickness and coating first, then by finish.
Where to buy
Creality Official K1 Max Build Plate Textured Surface 315x310mm PEI Sheet Flexible Removable Spring Bed Plate for K1 Max, Ender 3 V3 Plus(Without Magnetic Base)
What to check
- Listed for the K1 Max, around 315 mm square. K1 and K1C plates are 235 mm.
- Spring steel 0.5 mm or thicker.
- Coating thickness stated; the K1 Max runs ABS and ASA at 100 °C, which is hard on powder coat.
- Double-sided if you want smooth PEI without a second plate.
Surface by material
- PLA: textured PEI, 55 to 60 °C.
- PETG: textured PEI, 75 to 80 °C.
- ABS and ASA: textured PEI at 95 to 100 °C with the chamber preheated, or smooth PEI with glue stick. Large parts on a large bed show lifting first; a brim helps.
The plates in the box
Creality’s official K1 Max textured plate is the direct replacement; the official K1 Max PEI sheet is the smooth option; the double-sided textured PEI plate for the K1 Max gives both. See smooth versus textured to choose.
Swapping
- Wash with dish soap and water; do not touch the surface.
- Seat it against the rear stop on the magnetic bed.
- Run auto-leveling; the K1 Max re-measures the plate.
- If the first layer fails in one area only, check for a lifted magnetic sheet under the plate.
FAQ
Do K1 plates fit the K1 Max? No; too small.
Why is my K1 Max plate bowed? Thin steel or a warped magnetic sheet. Replace with a thicker plate; re-stick the sheet if it has lifted.
Glue on textured PEI for ABS? Not usually needed with the chamber warm; a little on the corners of very large parts helps.
