Bambu Lab A2L: The Large Open-Frame Bambu
LayerWalker is a participant in the Amazon Services LLC Associates Program. We may earn a commission when you buy through links on our site, at no extra cost to you.

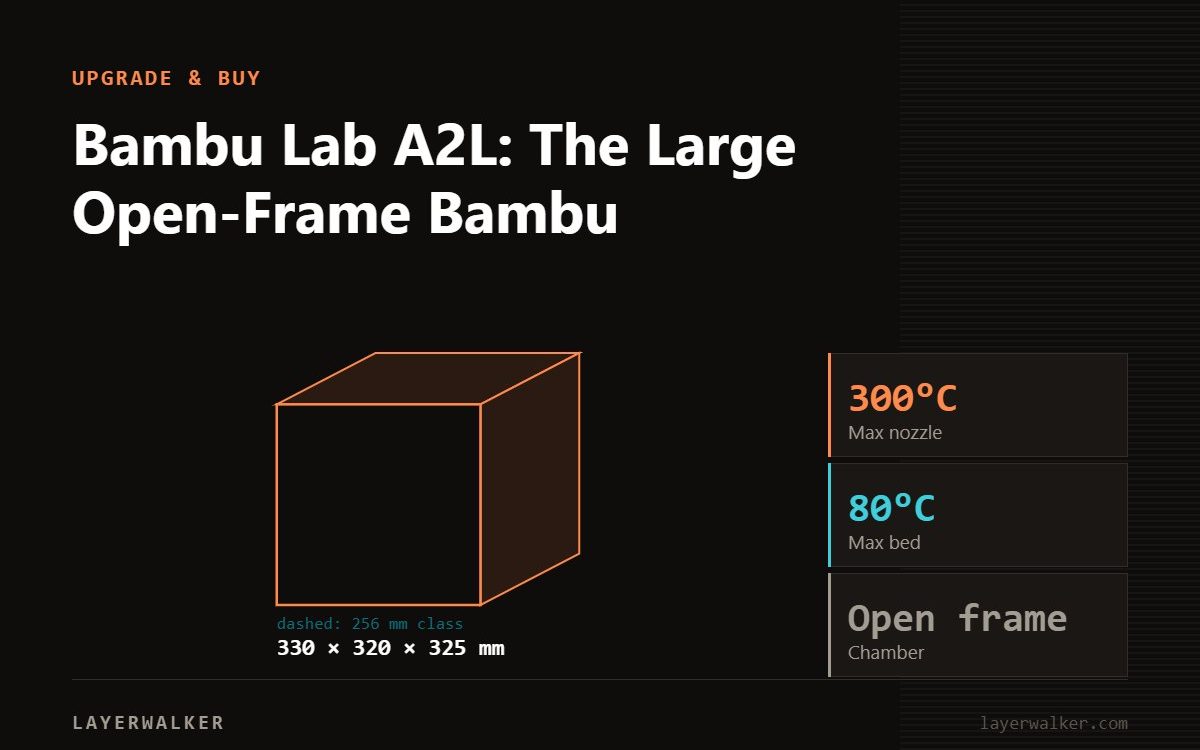

The A2L is the big A-series printer: 330 × 320 × 325 mm on an open bedslinger frame, 300 °C hotend, 80 °C bed, 500 mm/s and a servo extruder with nozzle-pressure sensing. It is for large PLA, PETG and TPU parts at a lower price than an enclosed machine of that size. The 80 °C bed and open frame rule out ABS and ASA at this scale.
Where to buy
Specifications
| Item | Value | Note |
|---|---|---|
| Build volume | 330 × 320 × 325 mm | Roughly the H2D single-nozzle volume, open frame |
| Chassis | Aluminium and steel | Plastic outer frame |
| Max nozzle temperature | 300 °C | Stainless nozzle standard; hardened optional |
| Nozzle sizes | 0.2, 0.4, 0.6, 0.8 mm | Filament cutter built in |
| Max bed temperature | 80 °C | Same as A1 mini, lower than A1 |
| Speed / acceleration | 500 mm/s / 10 m/s² | Max flow 28 mm³/s with PLA |
| Extruder | Servo motor, hardened steel gear | Nozzle-pressure based flow control |
| Plates | Textured PEI included; Engineering and Cool Plate SuperTack supported | Own size, not 256 mm |
| Multi-material | AMS lite or AMS 2 Pro | Only A-series model to accept the AMS 2 Pro |
| Weight | 12.8 kg | Footprint 544 × 529 × 505 mm |
What the numbers mean
The A2L is a large-format machine built for the materials that do not need an enclosure. On a 330 mm bed, an 80 °C heatbed is fine for PLA and workable for PETG with a textured plate and a brim; ABS at this size warps on any open frame, so it is not a compromise Bambu is hiding, it is the design. The servo extruder and pressure sensing are the same approach that makes the A1 series print clean corners without tuning.
Who it suits
- Cosplay, helmets, large organisers and signage in PLA or PETG that would otherwise be glued from 256 mm sections.
- Users who want the AMS 2 Pro drying on an open-frame printer.
- Farms that print PLA in volume and want a big bed per dollar.
Who should look elsewhere
- ABS, ASA, nylon or PC at large sizes: H2S.
- Anyone happy with 256 mm: the A1 is the same concept at lower cost; see A1 vs A2L.
The units in the box
The A2L is not sold on Amazon US; it is bought directly from Bambu Lab. The listings below are the closest Bambu machines that are on Amazon, shown so you can compare the alternative rather than as a substitute for the A2L itself.
FAQ
Do A1 plates fit the A2L? No; different size.
Is the A2L enclosed? No.
Can it use the AMS lite from an A1? Yes; it also accepts the AMS 2 Pro.
