Phrozen Sonic Mini 8K S: The Detail Benchmark for Small Miniatures
LayerWalker is a participant in the Amazon Services LLC Associates Program. We may earn a commission when you buy through links on our site, at no extra cost to you.

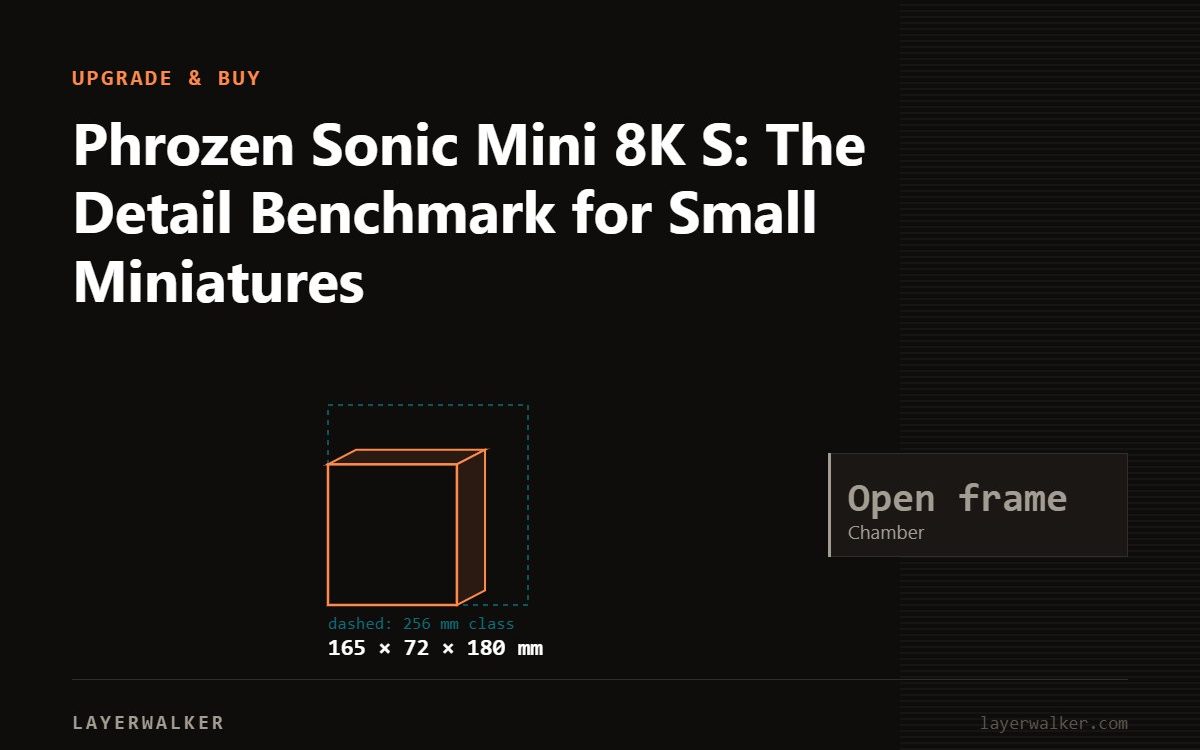

The Sonic Mini 8K S is a 7.1-inch 8K MSLA printer: 165 × 72 × 180 mm at 22 µm pixels, with Phrozen’s reputation for consistent screens and miniature-focused resin profiles. It has no tilt release, no auto levelling and no camera; it is slower and more manual than the Elegoo Mars 5 Ultra. Buy it for Phrozen’s ecosystem and proven miniature detail; buy the Mars 5 Ultra for speed and convenience.
Uncured resin is a skin and respiratory irritant. Wear nitrile gloves and eye protection, ventilate the room or vent the printer outdoors, wash parts in IPA in a covered container, and fully cure before handling. Never pour resin or IPA wash down a drain.
Where to buy
Specifications
| Item | Value | Note |
|---|---|---|
| Build volume | 165 × 72 × 180 mm | |
| LCD | 7.1-inch 8K mono | 22 µm pixels |
| Release | Standard lift | No tilt |
| Levelling | Manual | Paper method |
| Camera | No | |
| Speed | About 80 mm/h | Resin dependent |
| Light | ParaLED 3.0, 405 nm |
Why it still gets recommended
Phrozen built its name on miniature detail and the Mini 8K series is the reference many painters compare against. The screens are consistent, the resin profiles for Phrozen’s own resins are tuned, and the community around the machine is large. For a painter who wants a known quantity and does not care about speed, it remains a safe buy.
Where the Mars 5 Ultra beats it
- Tilt release at up to 150 mm/h versus a conventional lift.
- Auto levelling and a camera.
- Comparable 18 µm pixels on a similar plate.
See the Mars 5 Ultra page. The Sonic Mighty 8K is Phrozen’s 10-inch step up at 218 × 123 × 235 mm with 28 µm pixels, for larger models at slightly lower detail.
What you also need
A wash and cure station, gloves, ventilation and a resin matched to miniatures; see resin types.
The units in the box
The listings are the Sonic Mini 8K S, the Sonic Mighty 8K and the Elegoo Mars 5 Ultra as the direct rival.
FAQ
8K on 7.1 inches versus 9K on 7 inches? 22 µm versus 18 µm; both are far finer than paint can show.
Does it need Phrozen resin? No; any 405 nm resin works with a calibrated exposure.
