HMS 0500-0300-0001-0004: The Filament Buffer Module Is Malfunctioning
LayerWalker is a participant in the Amazon Services LLC Associates Program. We may earn a commission when you buy through links on our site, at no extra cost to you.
HMS 0500-0300-0001-0004 means the filament buffer module is malfunctioning and asks you to restart the device. The buffer stores slack so retraction does not have to turn the spool, and it reports as a module in its own right.
It is also the easiest module to work on, because it comes out as a unit and has very little inside it.
Where to buy
Hold it steady while you look

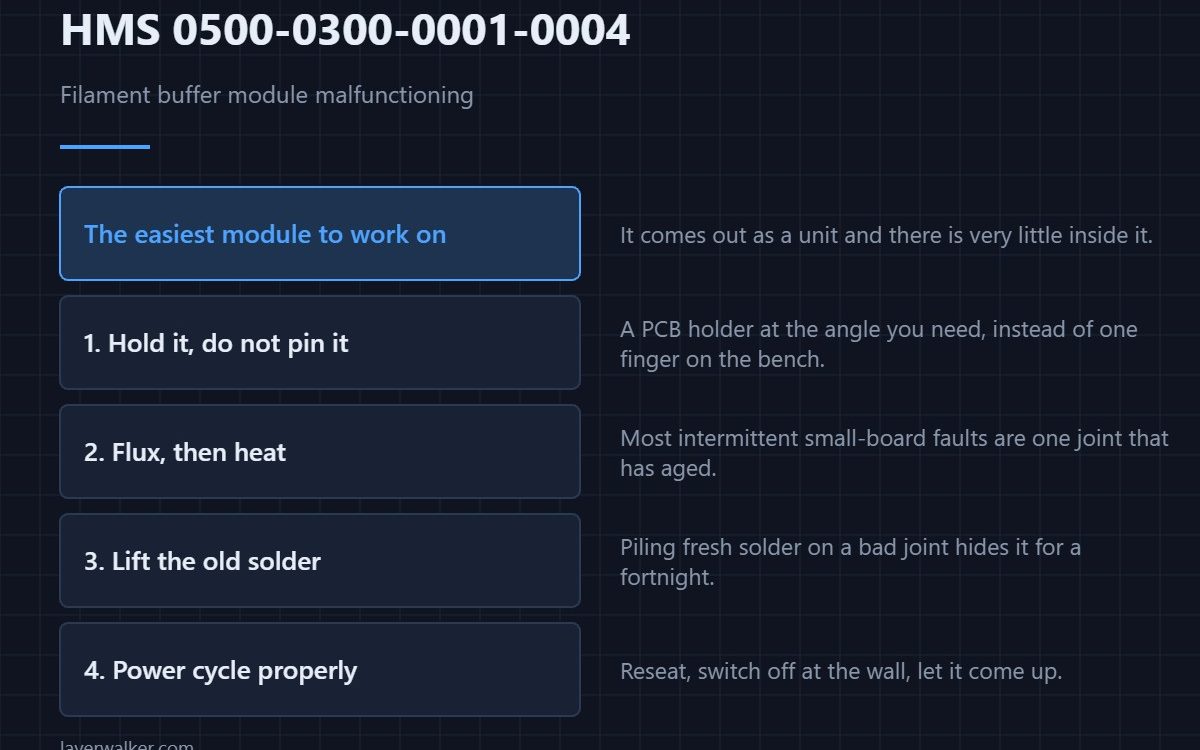

A helping-hands PCB holder grips the board at the angle you need instead of you pinning it against the bench with one finger. On a module this small that is the difference between a clean inspection and a snapped connector.
Deal with a dry or cracked joint
A drop of no-clean liquid flux on a suspect joint, then heat, reflows it properly. Most intermittent module faults in small boards are one joint that has aged, and flux is what makes a repair stick rather than look repaired.
Lift old solder before adding new
Desoldering braid takes the old joint off cleanly so the new one wets the pad. Piling fresh solder onto a bad joint hides the problem for a fortnight.
Then put it back and restart properly
Reseat, power off at the switch rather than the menu, and let it come up. A buffer that reports clean and then feeds normally is fixed.
How HMS 0500-0300-0001-0004 pairs with the AMS module

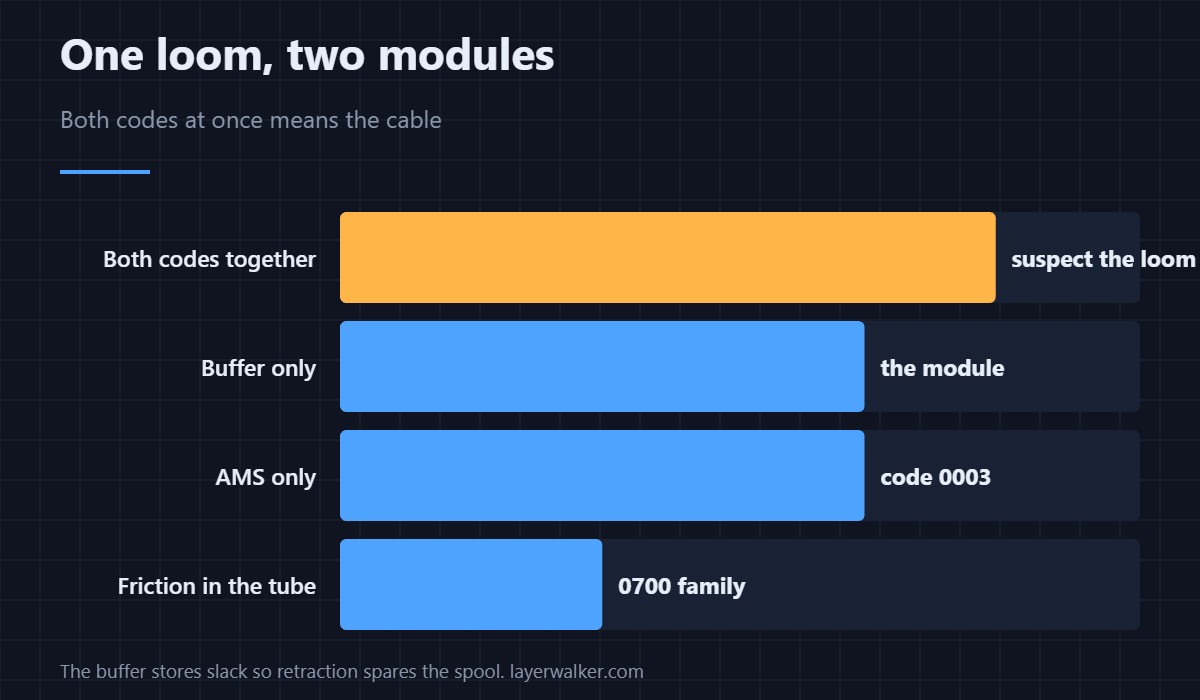

The unit itself reports HMS 0500-0300-0001-0003, and the two share a loom. Seeing both at once points at the cable rather than at two modules.
When it is the path rather than the module
Friction in the tube feeding the buffer gives HMS 0700-2000-0002-0019, which is a mechanical complaint instead. The system context is in the X1C with AMS and the AMS hub guide.
HMS 0500-0300-0001-0004 FAQ
What does the buffer actually do?
Stores a loop of slack so retraction does not fight the spool.
Can I run without it?
Not with the AMS. It is part of the feed path.
Is board repair realistic here?
On a module this simple, yes, if you can solder.
Why does it fail with the AMS module?
Because they share the loom that connects both.
